Torque Arm

Pneumatic Torque Arm

Model

Q1666-N, Q1666-X, Q1688-N, Q1688-X

Application

Aerospace Industry Tools

Product Inquiry

Model	Type	Description	Working Range	Max Tool Weight	Max Torque
Q1688-N	Pneumatic Standard Torque Arm	Pneumatic cylinder – suitable for pneumatic tools Allows tool movement in all directions: forward / backward / left / right (360°) Two-piece articulated forearm design for greater freedom of movement during operation Telescopic structure from end to forearm allows easy adjustment with 1-inch precision, up to 6 inches maximum Applicable for pneumatic tools under 40 kg	4–33"	15 lbs (6.8kg)	110 lbs (49.89kg)

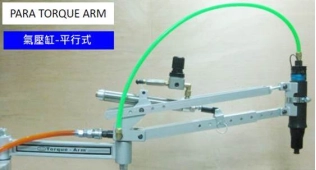

Q1688-X	Pneumatic Parallel Torque Arm	Pneumatic cylinder with parallel arm design – suitable for pneumatic tools Allows parallel left–right (180°) and vertical up–down movement Two-piece articulated forearm design for greater freedom of movement during operation Telescopic structure from end to forearm allows easy adjustment with 1-inch precision, up to 6 inches maximum Applicable for pneumatic tools under 40 kg	4–33"	15 lbs (6.8kg)	110 lbs (49.89kg)

▲ Specifications are subject to change without prior notice.

★ 【Customization】Custom specifications are available based on customer requirements. Please
contact us for more details.

Model	Type	Description	Working Range	Max Tool Weight	Max Torque
Q1666-N	Pneumatic Standard Torque Arm + V-Type Tool Holder	Pneumatic cylinder – suitable for pneumatic & electric tools Allows tool movement in all directions: forward / backward / left / right (360°) Two-piece articulated forearm design for greater freedom of movement during operation Telescopic structure from end to forearm allows easy adjustment with 1-inch precision, up to 6 inches maximum Applicable for pneumatic & electric tools over 40 kg	4–33"	15 lbs (6.8kg)	110 lbs (49.89kg)
Q1666-X	Pneumatic Parallel Torque Arm + V-Type Tool Holder	Pneumatic cylinder with parallel arm design – suitable for pneumatic & electric tools Allows parallel left–right (180°) and vertical up–down movement Two-piece articulated forearm design for greater freedom of movement during operation Telescopic structure from end to forearm allows easy adjustment with 1-inch precision, up to 6 inches maximum Applicable for pneumatic & electric tools over 40 kg	4–33"	15 lbs (6.8kg)	110 lbs (49.89kg)
