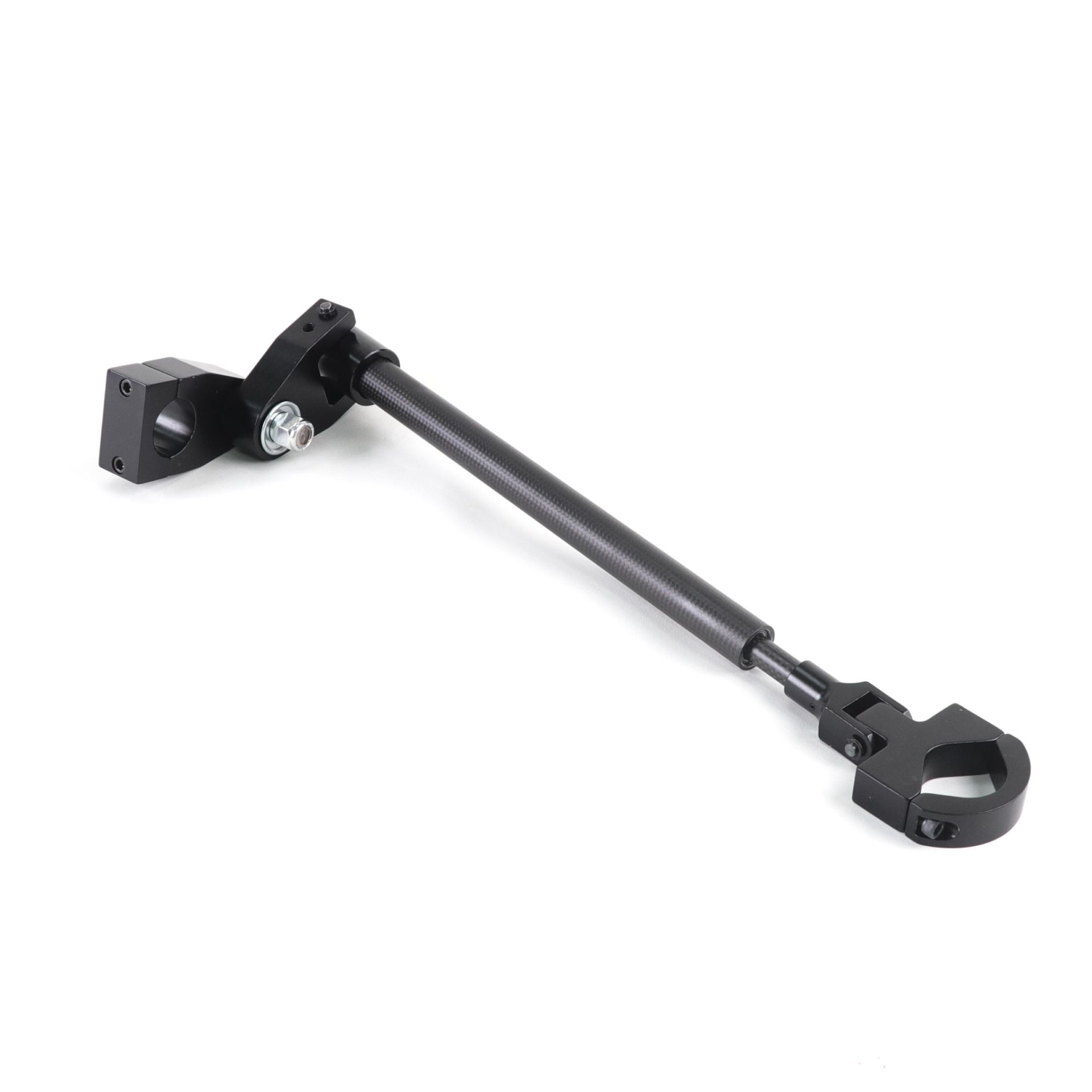

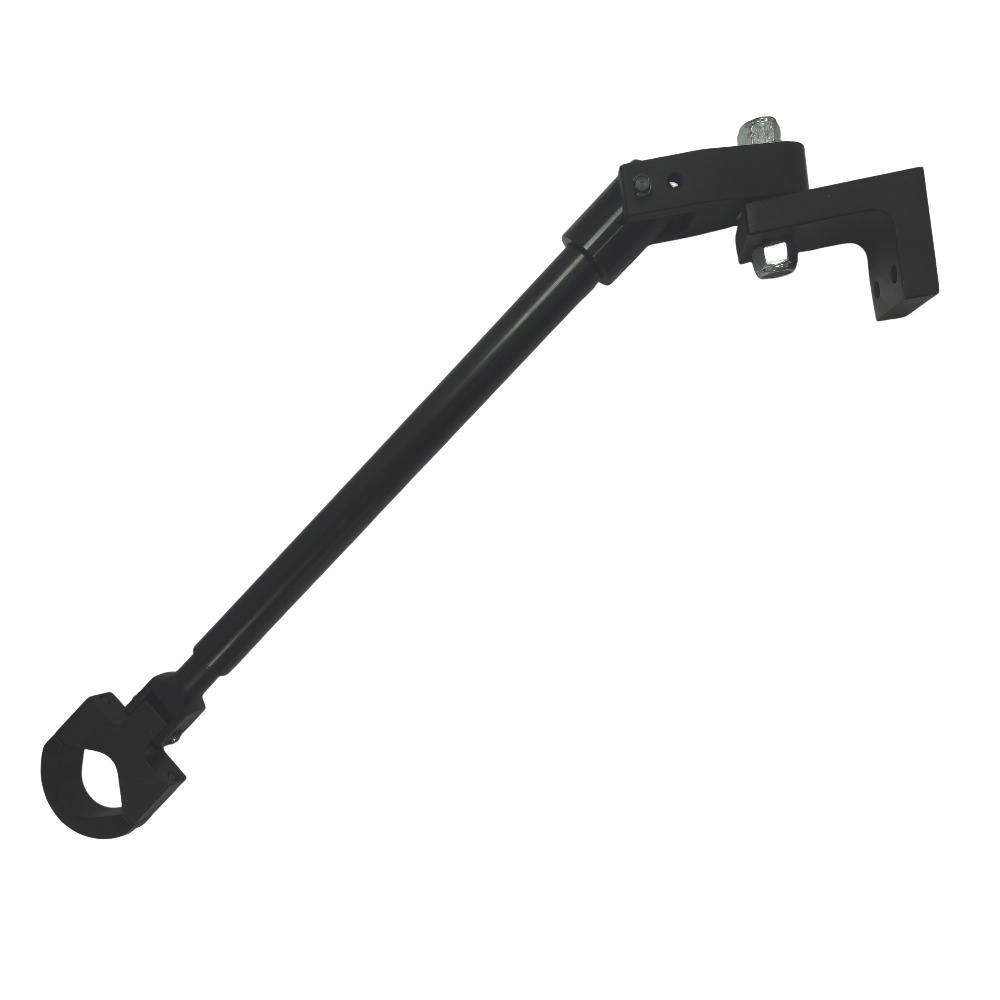

Aluminum Telescopic Torque Arm
Model
Q2000-Z1, Q2000-Z2, Q2000-Z3, Q2000-Z5
Application
Aerospace Industry Tools
Function
Torque Assist Arm
Product Type
Aluminum Torque Arm
| Material | Model | Specifications | Maximum Allowable Torque | Working Distance | Weight | |
| Nm | Base Telescopic Length cm |
Maximum Telescopic Length cm |
Kg | |||
| Aluminum | Q2000-Z1 | Table Clamp Mount + Bracket + Aluminum Telescopic Tube | 30 | 4.75 | 105 | 3.0 |
| Q2000-Z2 | Bracket + Aluminum Telescopic Tube | 30 | 4.75 | 105 | 2.0 | |
| Q2000-Z3 | Aluminum Telescopic Tube Only | 30 | 4.75 | 105 | 1.2 | |
| Q2000-Z5 | L-Type 2-Hole Mount + Aluminum Telescopic Tube | 30 | 4.75 | 105 | 1.3 | |

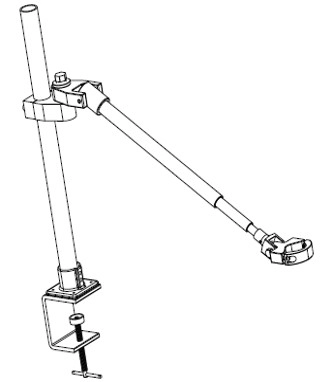

Suitable for installation on any workstation with a right-angle tabletop edge.

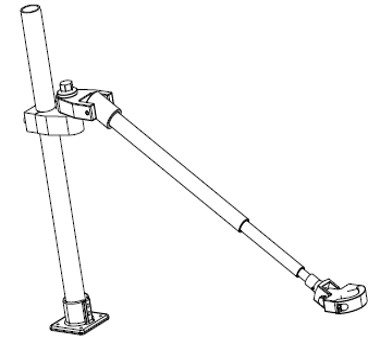

Suitable for worktables with pre-drilled holes for direct mounting.
Suitable for mounting onto existing columns or pillars on the production line.
Suitable for mounting on rails, steel plates, or similar structures; drilling is required prior to installation.
- Suitable for straight, angle, and pistol-type pneumatic or electric screwdrivers.
- Three-stage telescopic design with a minimum working distance of 47.5 cm and a maximum extension of 105 cm.
- Available in four configurations, allowing selection based on production line layout requirements.
- In addition to a fixed tool standby position, the tool can be easily repositioned during operation.
- Reduces reaction force during operation, helping prevent operator injury while improving production line efficiency.
- The use of a torque arm is recommended for straight tools (torque above 3 Nm), pistol-type tools (torque above 12 Nm), and angle tools (torque above 20 Nm) to enhance operator safety.
