PS-ABL Series | Brushless Fully Automatic Electric Nutrunner
PS-ABL Series | Brushless Fully Automatic Electric Nutrunner

PS-ABL Series | Brushless Fully Automatic Electric Nutrunner

Model

PS10ABL, PS11ABL, PS20ABL, PS21ABL, PS30ABL, PS31ABL, PS32ABL, PS33ABL, PS41ABL, PS42ABL, PS45ABL, PS51ABL, PS52ABL

Application

Assembly Line Tools

Function

Corded Type

Product Type

Angle Screwdriver Type

Torque Range

0.2–30 kgf·cm / 0.02–3.0 Nm

Product Inquiry
Model No-Load Speed Weight Overall Length Diameter Torque Range Power Supply Torque CPK Value (Compliant with ISO 5393) Fastening Capacity Accessories
r.p.m. g mm mm Kgf-cm V(DC) % Machine Screw Self-Tapping Screw Bit Size
1/4”
PS10ABL 300 305 207 34 0.2-2.0 12 ±3 1.67 M1.0-M2.2 M0.9-M1.7 #0
PS11ABL 1000 305 207 34 0.2-2.0 12 ±3 1.67 M1.0-M2.2 M0.9-M1.7 #0
PS20ABL 300 305 207 34 0.5-5.0 12 ±3 1.67 M1.4-M2.8 M1.1-M2.3 #0
PS21ABL 1000 305 207 34 0.5-5.0 12 ±3 1.67 M1.4-M2.8 M1.1-M2.3 #0
PS30ABL 300 305 207 34 1.0-10 12 ±3 1.67 M1.7-M3.5 M1.4-M2.9 #0
PS31ABL 1000 355 207 34 1.0-10 12 ±3 1.67 M1.7-M3.5 M1.4-M2.9 #0
PS32ABL 1400 355 207 34 1.0-10 12 ±3 1.67 M1.7-M3.5 M1.4-M2.9 #0
PS33ABL 650 355 207 34 1.0-10 12 ±3 1.67 M1.7-M3.5 M1.4-M2.9 #0
PS41ABL 1000 355 207 34 3.0-17 12 ±3 1.67 M2.5-M4.3 M2.0-M3.4 #2
PS42ABL 1400 355 207 34 3.0-17 12 ±3 1.67 M2.5-M4.3 M2.0-M3.4 #2
PS45ABL 450 355 207 34 5.0-25 12 ±3 1.67 M2.8-M4.8 M2.3-M3.8 #2
PS51ABL 1000 355 207 34 5.0-30 12 ±3 1.67 M2.8-M5.0 M2.3-M4.1 #2
PS52ABL 2000 355 207 34 5.0-20 12 ±3 1.67 M2.8-M4.5 M2.3-M3.5 #2
  1. Advanced Brushless Motor
    The high-tech brushless motor delivers energy-efficient, eco-friendly, and contamination-free performance. With no sparks and no carbon brush pollution, it eliminates the need for brush replacement and offers a significantly longer service life compared to conventional brushed tools. The motor also features an automatic shut-off function that stops operation once the preset torque value is reached.
  2. Patented Clutch System
    A specially engineered structure combined with a patented clutch design provides low noise, low vibration, and high precision—meeting stringent quality requirements.
  3. External Torque Adjustment for Easy Operation
    Allows users to quickly and conveniently adjust torque settings for efficient operation.

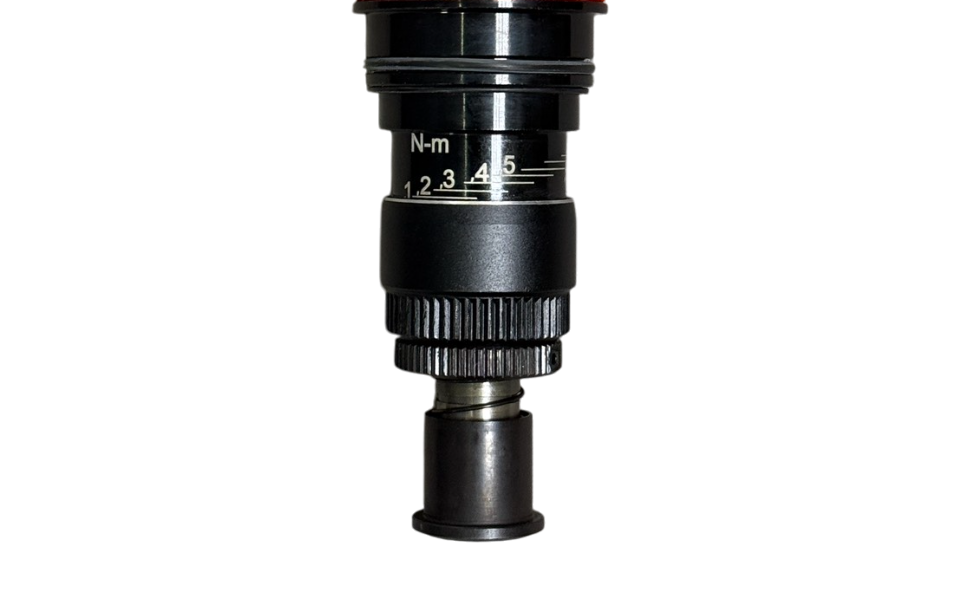

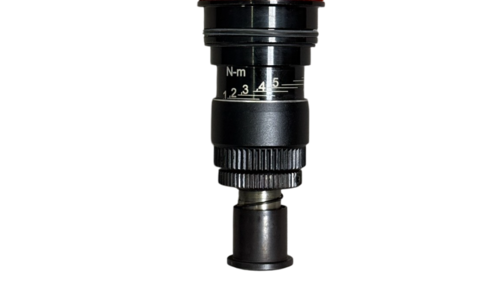

    Torque Indicator Function

  4. Low Reaction Force
    Ergonomically designed to enhance workplace safety, protect the wrist, reduce occupational injuries, and minimize hand strain caused by reaction force.
  5. Non-Contact Trigger Switch Design
    The trigger-activated design maintains high torque repeatability while ensuring safer and more reliable operation.
  6. Dual Reverse Button Design
    The modular reverse switch and power cable end, combined with a non-contact switch design, reduce the drawbacks of traditional contact switches and minimize spark risk. This design enhances operator safety, simplifies maintenance, lowers failure rates, and extends overall tool lifespan.

Brushed Motor vs. Brushless Motor — Simple Comparison

Brushed Motor Brushless Motor
Control Simple Complex
Operating Temperature Poor high-temperature resistance High-temperature resistant
Efficiency Low High
Carbon Brushes Requires regular cleaning / replacement No carbon brushes
Maintenance Regular maintenance required Maintenance-free
Motor Size Large Compact
Weight Heavy Lightweight
Service Life Short Long
Motor Temperature Rise High Low
Torque Output Low High
Noise Level High Low
Sparking Present None

Tool Operation Method

Right-hand operation Left-hand operation
Forward rotation / Tighten screw Reverse rotation / Loosen screw Forward rotation / Tighten screw Reverse rotation / Loosen screw

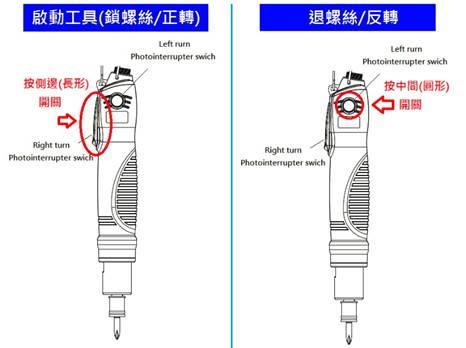

Product Diagram

Tighten screw (forward rotation) → Press the side (elongated) switch
Loosen screw (reverse rotation) → Press the center (round) switch

Please refer to the video.

Video Operation Steps:

  1. At 0.05 seconds, perform Loosen (reverse rotation) → Tighten (forward rotation), repeat this action four times.
  2. At 0.17 seconds, switch to another screw, then perform Tighten (forward rotation) → Loosen (reverse rotation), repeat this action five times.

Additional Notes: Differences Between PS-AB Series and PS-ABL Series

  1. The PS-SBL series is an enhanced version, offering higher power output and more stable torque performance.
  2. The power supply unit features a larger and thicker housing, providing improved voltage regulation and overall stability.
