QG-SDP Series | Pistol-Type Trigger Pneumatic Wrench
Model
QG48SDP,QG50SDP,QG55SDP,QG60SDP,QG65SDP,QG68SDP
Application
Aerospace industrial tools, assembly line tools
◼ Sleek Lightweight Architecture
Features an all-new streamlined, weight-reduced design that makes the tool 25%
lighter than competing brands.
◼ Precision Engineering & Patented Motor
Engineered with a unique mechanical structure and our patented specialized motor
to ensure ultra-low noise, minimal vibration, and high-precision performance.
◼ Innovative Pull-Sleeve Design
The all-new pull-to-release shaft sleeve design significantly enhances workplace
safety, allowing for lightning-fast, effortless bit replacements.

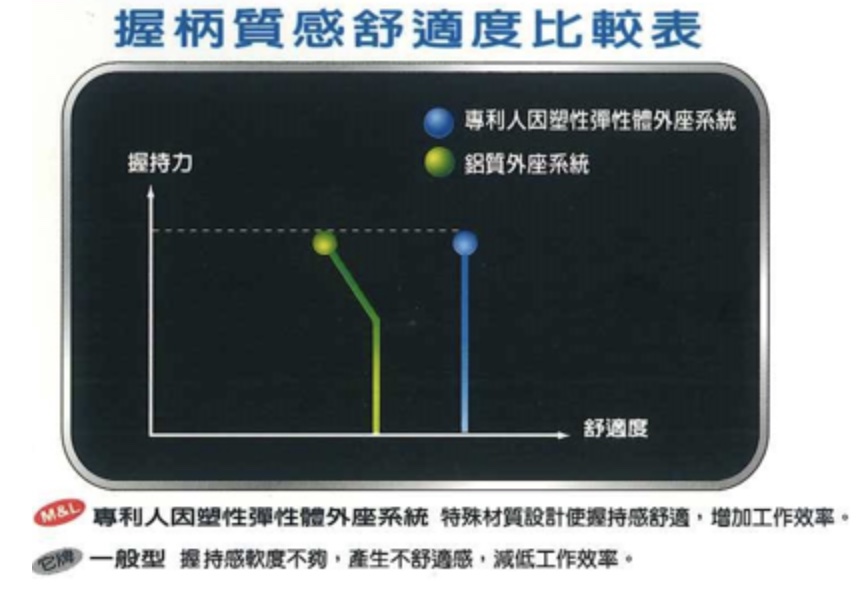

◼ Premium Hybrid Rubber Grip (Q-Series Exclusive)
Crafted from advanced aluminum and a premium soft-hard hybrid rubber blend,
the Q-Series delivers exceptional durability, wear resistance, and a comfortable,
anti-slip hold.
◼ Oil-Lubricated vs. Oil-Free: Lubrication and Protection
| Item | Oil tools | Oil-Free tools |
|---|---|---|
| Maintenance Methods | Daily regular oiling | The oiling cycle is about 7 Days(168hours) |
| Oil Specifications | Use Spindle Oil or Standard Air Tool Oil |
Use M&L [High Speed Spindle Oil(CP-OIL01) ] |
| Maintenance Accessibility | Readily Available Oil & Quick Maintenance |
Significantly Reduced Maintenance Frequency & Time Savings |
| Extended Service Life | Reduced Internal Wear & Extended Service Life |
Stable Lubrication for Continuous Long-Term Operation |
| Working Efficiency | Consistent Torque & Smooth Operation |
Lower Downtime Risk & Enhanced Line Productivity |
| Value Proposition | Simplified Maintenance with Controllable Costs |
The Ultimate Choice for Low Maintenance & High Efficiency |
■ Actuation: Trigger Start
| Model | Speed | Weight | Length | Diameter | Air Pressure |
Min Air Hose Bore |
Air Consumption |
Torque Range |

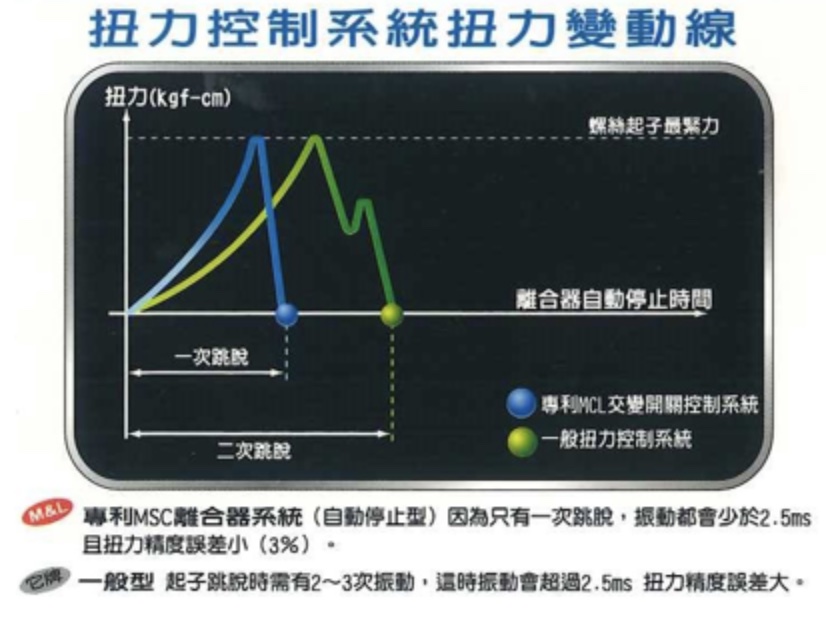

Standard Deviation |
Fastening Capacity | |
| rpm | g | mm | mm | kg/cm² | mm | m³/min | kgf-cm | % | Machine Screw |
Tapping Screw |
|
| QG48SDP | 1700 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 7-50 | ± 3 | M3.2-M6.0 | M2.6-M4.8 |
| QG50SDP | 1400 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 10-60 | ± 3 | M3.5-M6.2 | M2.9-M5.0 |
| QG55SDP | 1000 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 12-75 | ± 3 | M3.8-M6.8 | M3.0-M5.5 |
| QG60SDP | 550 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 30-110 | ± 3 | M5.0-M7.7 | M4.1-M6.2 |
| QG65SDP | 300 | 1100 | 215 | 39 | 6.0 | 8.0 | 0.55 | 30-180 | ± 3 | M5.0-M9.2 | M4.1-M7.1 |
| QG68SDP | 250 | 1250 | 215 | 39 | 6.0 | 8.0 | 0.55 | 50-280 | ± 3 | M6.0-M10.8 | M4.8-M8.6 |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
● Multi-direction Air-inlet feature Featuring a professional multi-inlet design
Top (Optional), Bottom, and Rear (Optional). This enhances workspace flexibility, allowing operators to
adjust the air intake direction to suit specific application needs.
adjust the air intake direction to suit specific application needs.
● Air Inlet Orientation Adjustment
| Lower Air Inlet Change to Upper | ||||||||||||
 |
| Switching from Bottom to Side Air Inle | ||||||||||||
 |
| Reverting to Bottom Air Inlet (Factory Standard) | ||||||||||||
 |
||||||||||||
