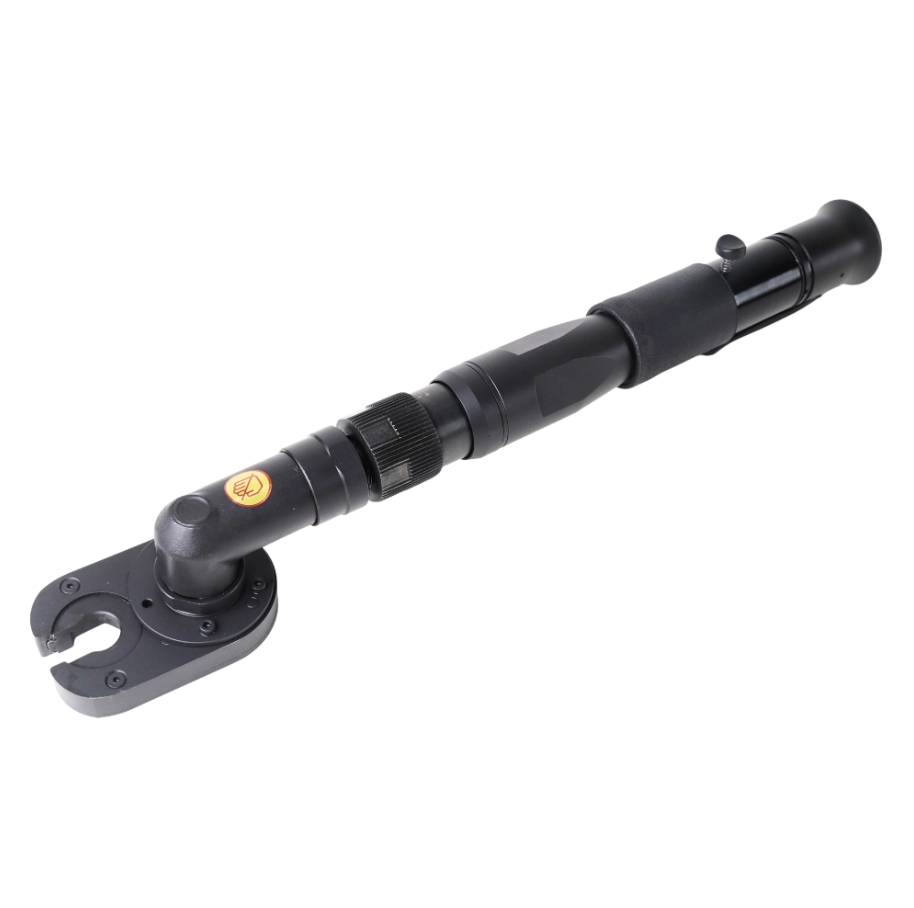

UW800 Series | Open-end Wrench
Model
UW800
Application
Aerospace industry tools, assembly line tools, customized tools
● Patented Start Switch for Easy Success
Prevents operational errors. Supports both tightening (button up) and loosening (button down) for full-opening gears; semi-opening gears are for tightening only.
● Professional Tool Operation Sequence
1. Rotate the gear to the open position.
2. Slide the tool onto the fastener.
3. Press the trigger and button simultaneously to tighten.
4. Reset the gear to the open position before lifting the tool.
5. The tool exits as the gear returns to the starting point at a controlled speed.
2. Slide the tool onto the fastener.
3. Press the trigger and button simultaneously to tighten.
4. Reset the gear to the open position before lifting the tool.
5. The tool exits as the gear returns to the starting point at a controlled speed.
● External Torque Adjustment Design
Allows operators to easily adjust to the specific torque required for the production line, ensuring precision and efficiency.
● High-Performance Pneumatic Motor
Provides superior power with a lightweight design, minimizing operator fatigue while maintaining high-speed operation.
| Model | Torque Range |
Speed | Open Gear Size |
Housing Size |
Weight |
| Nm | rpm | mm | mm | kg | |
| UW800-22 | 40-120 | 100 | 22 | 111 | 3.6 |
| UW800-24 | 20-60 | 85 | 24 | 68 | 3.4 |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool.This guideline can also serve as an important reference when selecting the appropriate model.
| Model | Torque Range |
Speed | Open Gear Size |
Housing Size |
Weight |
| Nm | rpm | mm | mm | kg | |
| UW800-22 | 40-120 | 100 | 22 | 111 | 3.6 |
| UW800-24 | 20-60 | 85 | 24 | 68 | 3.4 |
▲ 規格若有更改，恕不另行通知。
★ 【特製化】可依照客戶需求特製專屬規格，詳情請與我們聯絡。
★ 【提示】扭力值範圍僅供參考，實際扭力表現可能因使用條件與環境而有所差異。
★ 【提示】為確保零件耐用及延長工具壽命，建議操作時的工作扭力，勿超過工具最大扭力值的70%。長時間於工具的最大扭力使用下，可能導致零件加速耗損及工具壽命縮短。此原則亦可作為挑選合適型號的重要依據。
