QF-BBP Series | Pistol Grip Oil-Free Air Screwdriver (Trigger Start)
QF-BBP Series | Pistol Grip Oil-Free Air Screwdriver (Trigger Start)

QF-BBP Series | Pistol Grip Oil-Free Air Screwdriver (Trigger Start)

Model

Application

Product Inquiry
● One-handed F/R switch and multi-directional air intake optimize workspace flexibility.
● Streamlined 25% lighter design with a quick-release bit holder for maximum efficiency.
● Oil-free design eliminates daily lubrication, reducing maintenance and long-term costs
● Patented technology extends motor life while ensuring precise ±3% torque repeatability.
◼ Actuation: Trigger Start
Model Speed Weight Length Diameter Air Pressure Min Air Hose Bore Air Consumption Torque Range Std. Deviation Fastening Capacity
rpm g mm mm kg/cm² mm m³/min kgf-cm % Machine Screw Tapping Screw
QF35BBP 2200 640 180 33 6.0 5.0 0.28 3-20 ± 3 M2.5-M4.5 M2.0-M3.5
QF38BBP 1800 640 180 33 6.0 5.0 0.28 3-25 ± 3 M2.5-M4.8 M2.0-M3.8
QF41BBP 1000 640 180 33 6.0 5.0 0.28 5-35 ± 3 M2.8-M5.0 M2.3-M4.0
QF47BBP 550 640 180 33 6.0 5.0 0.28 10-50 ± 3 M3.5-M6.0 M2.9-M4.8
QF48BBP 1700 980 215 39 6.0 8.0 0.55 7-50 ± 3 M3.2-M6.0 M2.6-M4.8
QF50BBP 1400 980 215 39 6.0 8.0 0.55 10-60 ± 3 M3.5-M6.2 M2.9-M5.0
QF55BBP 1000 980 215 39 6.0 8.0 0.55 12-75 ± 3 M3.8-M6.8 M3.0-M5.5
QF60BBP 550 980 215 39 6.0 8.0 0.55 30-110 ± 3 M5.0-M7.7 M4.1-M6.2
QF65BBP 300 1100 215 39 6.0 8.0 0.55 30-180 ± 3 M5.0-M9.2 M4.1-M7.1
QF68BBP 250 1250 215 39 6.0 8.0 0.55 50-280 ± 3 M6.0-M10.8 M4.8-M8.6
▲ Tool length does not include the air inlet fitting. Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
● Multi-direction Air-inlet feature Featuring a professional multi-inlet design: Top (Optional), Bottom, and Rear (Optional). This enhances workspace flexibility, allowing operators to adjust the air intake direction to suit specific application needs.
● Air Inlet Orientation Adjustment
Lower Air Inlet Change to Upper

HOT PRODUCTS

  • R-LB Series | Lever Start Type Air Screwdriver
    R-LB Series | Lever Start Type Air Screwdriver
  • R-PB Series | Push Start Type Air Screwdriver
    R-PB Series | Push Start Type Air Screwdriver
  • R-BBP Series | Pistol Grip Air Screwdriver (Trigger Start)
    R-BBP Series | Pistol Grip Air Screwdriver (Trigger Start)

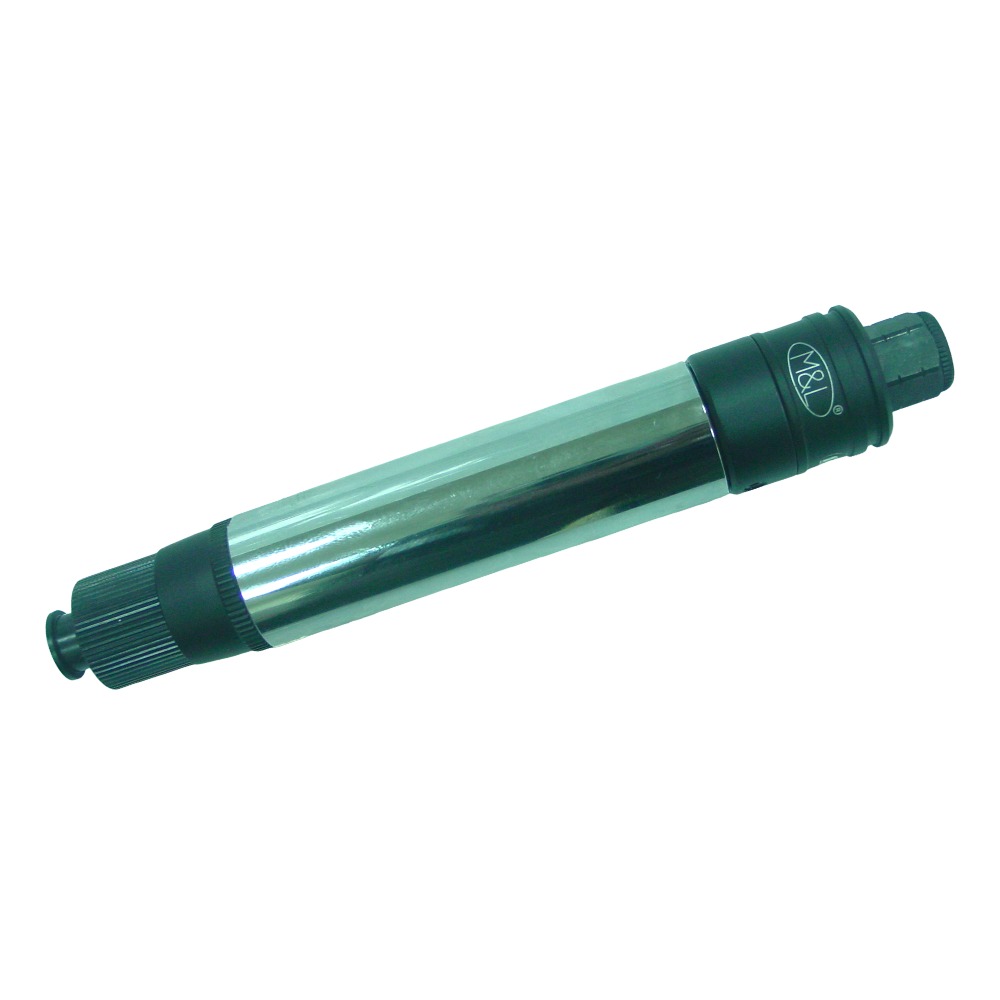

  • T-MB Series | Automation Air Screwdriver (Single-Hole Air Start)
