T-MPB/O.E. Series | Eco-Friendly Automation Air Screwdriver (Two-Hole Air Start)
Model
T10MPB/O.E.,T20MPB/O.E.,T30MPB/O.E.,T35MPB/O.E.,T38MPB/O.E.,T40MPB/O.E.,T45MPB/O.E.,T48MPB/O.E.,T50MPB/O.E.,T55MPB/O.E.,T60MPB/O.E.,T65MPBO.E.,T68MPB/O.E.
Application
Assembly Line Tools
■ Forward-Only Eco-Friendly Shut-Off Design
Operates in forward-only mode for tightening while incorporating an eco-friendly design that instantly stops the air motor once the preset torque value is reached.
■ Color Management and External Torque Adjustment
Utilizes a color-coded system to easily differentiate torque ranges for enhanced quality control, paired with an external ring for convenient torque adjustment.
■ Secure Clamping Area and Correct Airflow Setup
Requires securing the tool strictly within the designated clamping zone to prevent motor interference, while ensuring proper intake and exhaust alignment for stable operation.
■ M5 Signal Connector for Status Detection
Provides tool start and stop signal tracking via an M5 connector, making it ideal for recording fastening cycle counts or detecting potential screw stripping issues.
| Model | Speed | Weight | Diameter | Air Pressure |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Standard Deviation |
Fastening Capacity | |||

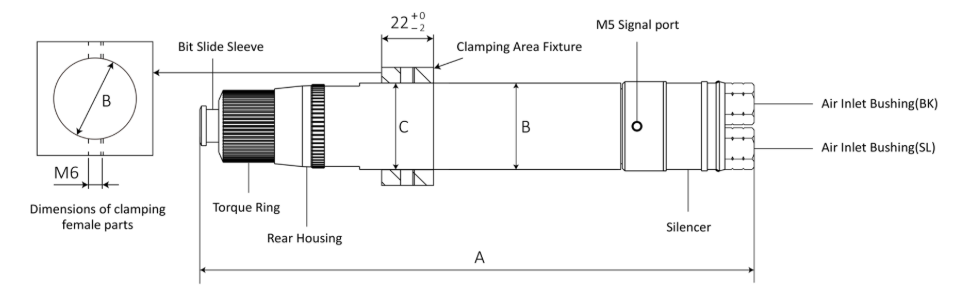

| A | B | C | Machine Screw |
Tapping Screw |
||||||||
| rpm | g | mm | mm | mm | kg/cm² | mm | m³/min | kgf-cm | % | |||
| T10MPB/O.E. | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.20 | 0.5-2 | ± 3 | M1.4-M2.2 | M1.1-M1.7 |
| T20MPB/O.E. | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.20 | 1-8 | ± 3 | M1.7-M3.4 | M1.4-M2.7 |
| T30MPB/O.E. | 1800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-17 | ± 3 | M2.5-M4.3 | M2.0-M3.4 |
| T35MPB/O.E. | 2200 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-20 | ± 3 | M2.5-M4.5 | M2.0-M3.5 |
| T38MPB/O.E. | 1800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-25 | ± 3 | M2.5-M4.8 | M2.0-M3.8 |
| T40MPB/O.E. | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 5-30 | ± 3 | M2.8-M5.0 | M2.3-M4.1 |
| T45MPB/O.E. | 800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.30 | 8-40 | ± 3 | M3.4-M5.6 | M2.7-M4.5 |
| T48MPB/O.E. | 1700 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 5-45 | ± 3 | M2.8-M5.8 | M2.3-M4.5 |
| T50MPB/O.E. | 1400 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 7-50 | ± 3 | M3.2-M6.0 | M2.6-M4.8 |
| T55MPB/O.E. | 1000 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 7-65 | ± 3 | M3.2-M6.5 | M2.6-M5.2 |
| T60MPB/O.E. | 550 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 15-95 | ± 3 | M4.0-M7.2 | M3.3-M6.0 |
| T65MPB/O.E. | 330 | 1200 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 30-180 | ± 3 | M5.0-M9.2 | M4.1-M7.1 |
| T68MPB/O.E. | 250 | 1200 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 50-280 | ± 3 | M6.0-M10.8 | M4.8-M8.6 |
＊ Tool length does not include the air inlet fitting.
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
● Output Drive
| 1/4" Hex | 5mm | 1/4" Square (FOR 10~45 type) |
3/8" Square (FOR 48~68 type) |
| MPB/O.E. | MPA/O.E. | MPW/O.E. | MPW/O.E. |
【Installation Guide】
● By connecting with M5 signal port, PLC automation system can precise control the torque to avoid any float, loose or miss occurred.
● Air screwdriver clutch will be released and motor will stop automatically when load reach the preset torque.
● Water filter, pressure regulator & oiler are the devices required upon tube configuration.
● In order to assure the tube from pressure interference, installation of quick exhaust valve is a must with the use of the air tool.
● Connect M5 signal port with pressure sensor.
[ATTENTION] For O.E. Eco-friendly tools:
The Black port is for AIR INTAKE, and the Silver port is for EXHAUST. Reversing the intake and exhaust connections will adversely affect motor operation.
【Notes】
| Code | Description | Code | Description |
| P | Pneumatic supply | F | M5 pressure sensor |
| A | Filter | S | Pneumatic screwdriver |
| B | Pressure regulator | X1 | 1/4”PT silver Hex vent |
| C | Oil fog lubricator | X2 | 1/4”PT black Hex Inlet(lock) |
| D | Solenoid valve | M5 | M5 signal port |
| E | Quick exhaust valve | - | - |
