GP Series | Straight Grinder(Lock type)
GP Series | Straight Grinder(Lock type)

GP Series | Straight Grinder(Lock type)

 Model

GP25FBF,GP25FB2F,GP25FEF,GP25FE2F,GP25FE3F

 Applications

Woodworking tools (including metalworking)

Product Inquiry
● High concentricity (< 0.05 mm) ensures low vibration and smooth grinding.
●

Low operating noise (approx. 72dB) with an ergonomic, soft, and easy-to-grip handle.

● Runout-free collet design with a 360° exhaust for all angles and a wear-resistant, comfortable rubber grip.
● New patented lightweight body (-20%) with a patented forward switch for safer and easier operation.
Model Free
Speed		 Weight Length Diameter Air
Pressure		 Min. air
Hose bore		 Air
Consumption		 Collet Noise
rpm kg mm mm Kg/cm² mm m³/min ±2dBA
GP25FBF 25000 0.55 170 35 6,0 5.0 0.28 1/4” 72
GP25FB2F 25000 0.55 170 35 6,0 5.0 0.28 1/8” 72
GP25FEF 25000 0.55 170 35 6,0 5.0 0.28 6 mm 72
GP25FE2F 25000 0.55 170 35 6,0 5.0 0.28 3 mm 72
GP25FE3F 25000 0.55 170 35 6,0 5.0 0.28 8 mm 72
▲ Tool length does not include the air inlet fitting. Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.

While spearkle damages user's eyes, they don't have any solution with other brand die grinder but wearing protection casing.

M&L patented both way right turn and left turn grinding function easy to turn rotation direction and prevent the sparkle from damaging user, the operation is more safety.

To prevent the sparkle from damaging user, the operator can switches rotation as right turn and makes the sparkle in the left side.

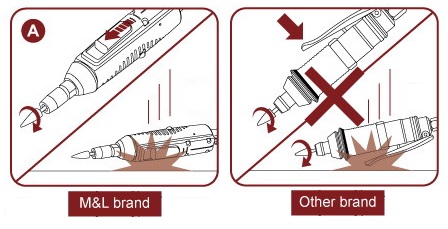

M&L Patented Forward Switch design avoid incautious lever pressing due to drop on table or on floor, makes user more safe and convenient.

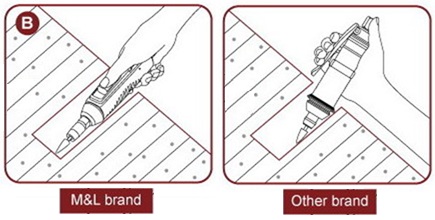

M&L Patented Forward Switch design eliminate troublesome to press throttle lever and reduce the operating space.
