A-PD Series | Pistol Type Direct Air Drill
Model
A39PD,A45PD,A48PD,A58PD,A62PD
Application
Woodworking tools (including metalworking)
◼ Ergonomic & Non-Slip Hybrid Grip
Features a pioneering dual-color ergonomic grip that seamlessly blends sleek aesthetics with an exceptional anti-slip, comfortable hold.
◼ High-Efficiency Low-Vibration Motor

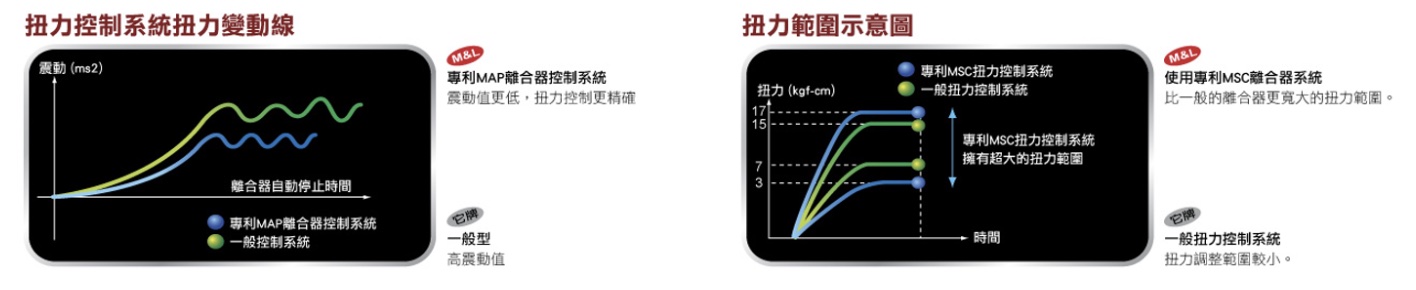

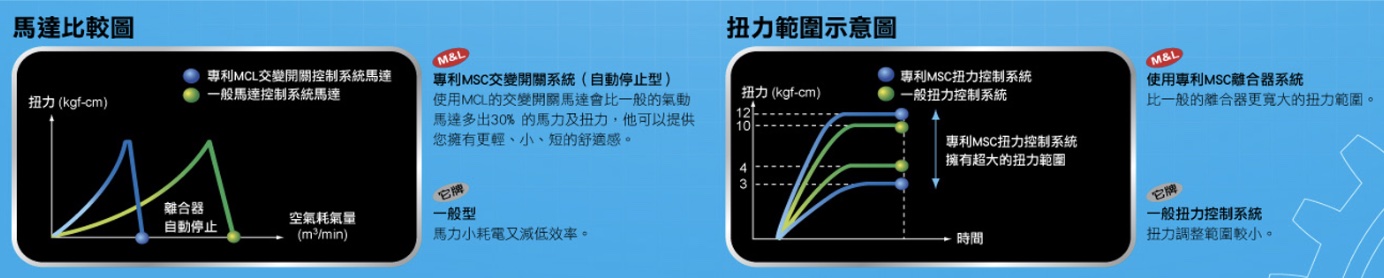

Employs a high-tech alternating air motor combined with a patented low-vibration clutch, delivering high-efficiency output with powerful torque.
◼ Versatile Multi-Functional Operation
The patented 3-in-1 chuck design allows for effortless switching between bits and drills, integrating drilling, fastening, and tapping into a single tool.
◼ Ultra-Lightweight & Integrated Silencer
An ultra-lightweight housing (reducing weight by 25%–44%) pairs with an integrated silencer to significantly diminish operator fatigue and workplace noise.
| Model | Speed | Weight | Length | Height | Diameter | Max Capcity |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Chuck Size |
| rpm | kg | mm | mm | mm | mm | mm | m³/min | Nm | ||
| A39PD | 2900 | 0.58 | 140 | 142 | 36 | 5 | 5.0 | 0.28 | 5.0 | 1/4" |
| A45PD | 1600 | 0.58 | 140 | 152 | 36 | 6 | 5.0 | 0.28 | 7.0 | 3/8" |
| A48PD | 1700 | 0.92 | 159 | 154 | 43 | 6 | 8.0 | 0.55 | 7.0 | 3/8" |
| A58PD | 750 | 0.92 | 159 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 | 3/8" |
| A62PD | 750 | 1.01 | 159 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 | 1/2" |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
