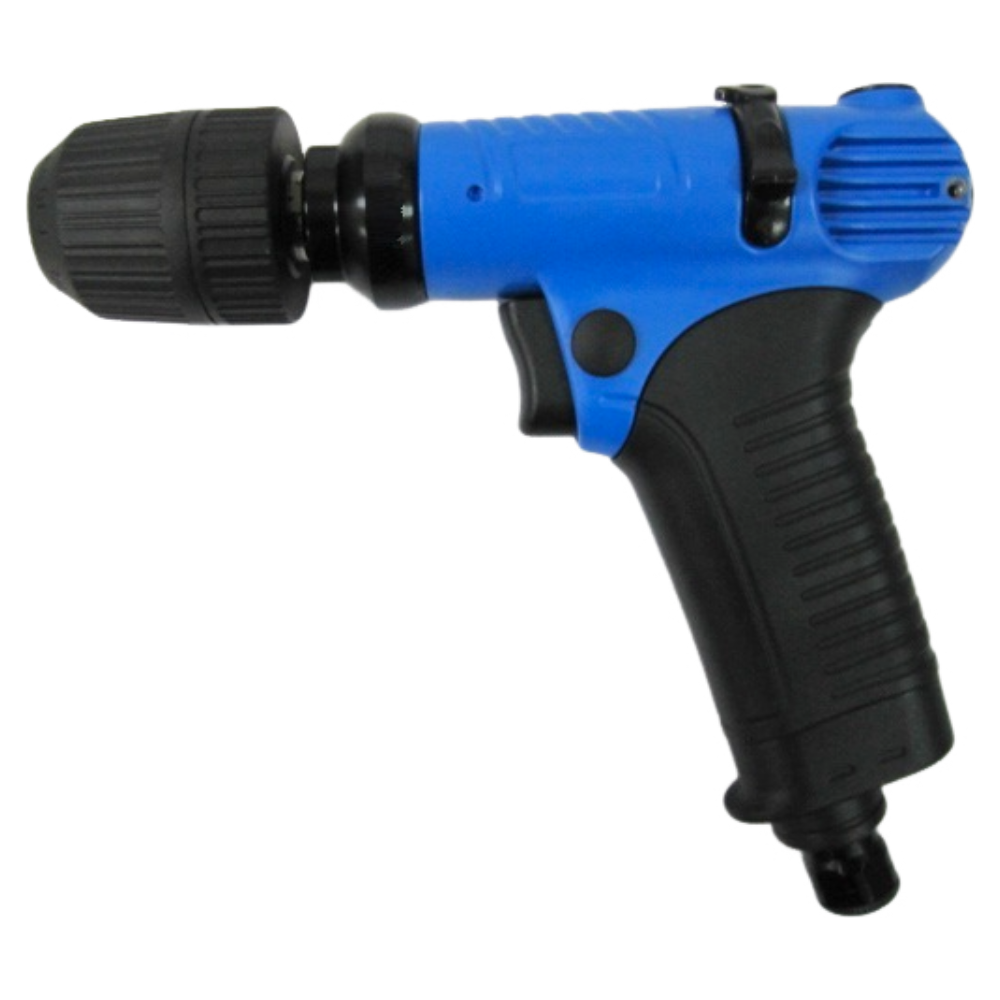

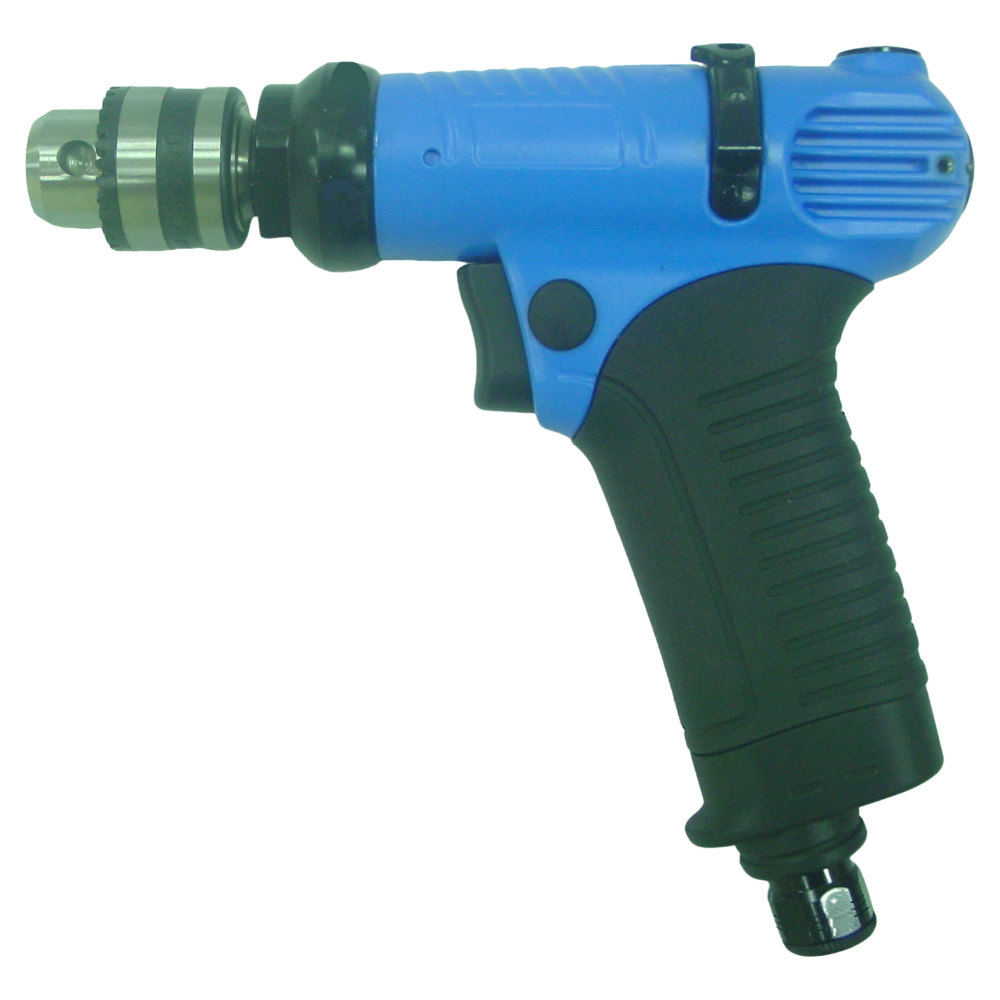

QG-PD Series | Pistol Type Direct Air Drill
Model
QG26PD,QG39PD,QG48PD,QG58PD,QG62PD
Application
Woodworking tools (including metalworking)
◼ Quick-Change Pull-Sleeve Design
The all-new pull-to-release shaft sleeve design allows for lightning-fast bit replacement,
significantly enhancing operational efficiency.
◼ Aluminum & Hybrid Rubber Grip
Crafted from a premium blend of aluminum and hybrid rubber to deliver exceptional
durability, wear resistance, and a comfortable, anti-slip grip.
◼ Multi-Directional Air Inlet & Optional Bottom Exhaust
Features a flexible multi-directional air inlet with an optional bottom exhaust design,
maximizing maneuverability while drastically reducing workspace noise and exhaust
interference.

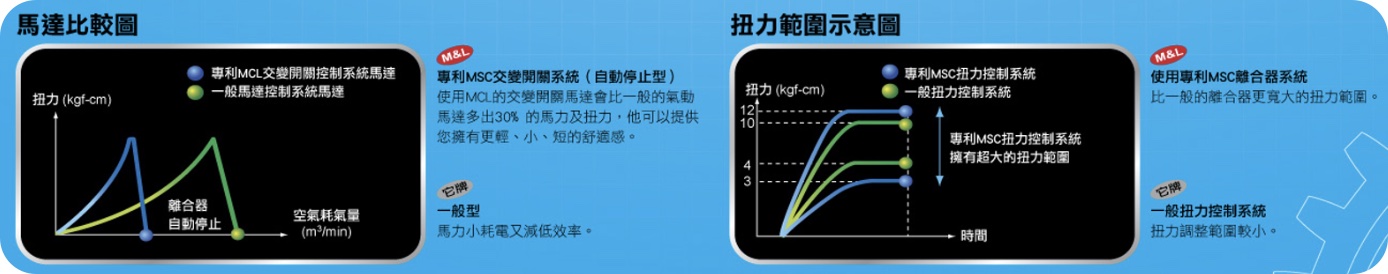

◼ Next-Gen Patented EV Motor
Equipped with our second-generation patented EV motor, boosting horsepower by 10% and
power output by 30%, all packed into a streamlined design that reduces tool weight by 25%.
| Model | Speed | Weight | Length | Height | Diameter | Max Capcity |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Chuck Size |
| rpm | kg | mm | mm | mm | mm | mm | m³/min | Nm | ||
| QG39PD | 2900 | 0.63 | 140 | 142 | 36 | 5 | 5.0 | 0.28 | 5.0 | 1/4" |
| QG45PD | 1600 | 0.63 | 140 | 152 | 36 | 6 | 5.0 | 0.28 | 7.0 | 3/8" |
| QG48PD | 1700 | 0.97 | 159 | 154 | 43 | 6 | 8.0 | 0.55 | 7.0 | 3/8" |
| QG58PD | 750 | 0.97 | 159 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 | 3/8" |
| QG62PD | 750 | 1.06 | 159 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 | 1/2" |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
