R-LDN Series | Straight Clutch Type Air Drill
Model
R39LDN,R45LDN,R48LDN,R58LDN
Application
Woodworking tools (including metalworking)
◼ Patented Low-Vibration Clutch
Equipped with an internal patented low-vibration clutch mechanism to ensure exceptionally stable operation and maximum operator comfort.
◼ Versatile Multi-Functional Operation
Allows for quick and effortless component replacement, delivering user-friendly operation across drilling, fastening, and tapping applications.

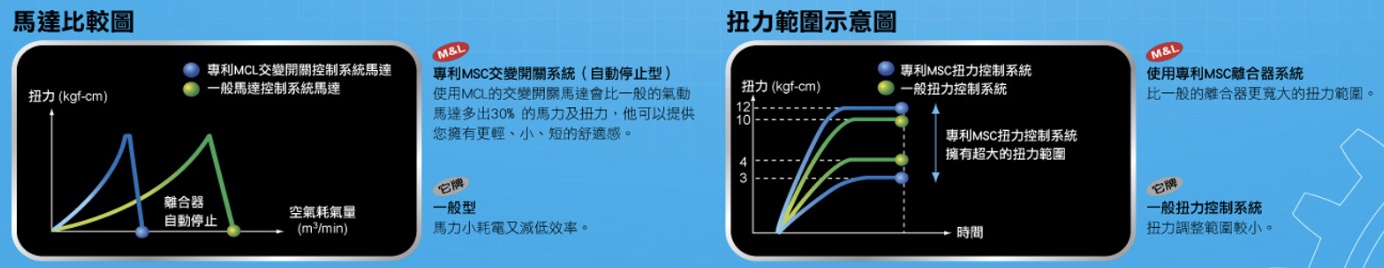

◼ High-Efficiency Alternating Motor
The high-tech alternating air motor provides 40% more horsepower and torque to significantly accelerate line productivity and efficiency.
◼ Patented Non-Slip Ergonomic Design
Features a patented ergonomic non-slip design, providing operators with optimal tool balance and an incredibly secure, comfortable grip.
| Model | Speed | Weight | Length | Diameter | Max Capcity |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Chuck Size |
| rpm | kg | mm | mm | mm | mm | m³/min | Nm | ||
| R48LDN | 1700 | 1.0 | 244 | 43 | 6 | 8.0 | 0.55 | 7.0 | 3/8" |
| R58LDN | 750 | 1.0 | 244 | 43 | 7 | 8.0 | 0.55 | 13.0 | 3/8" |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
