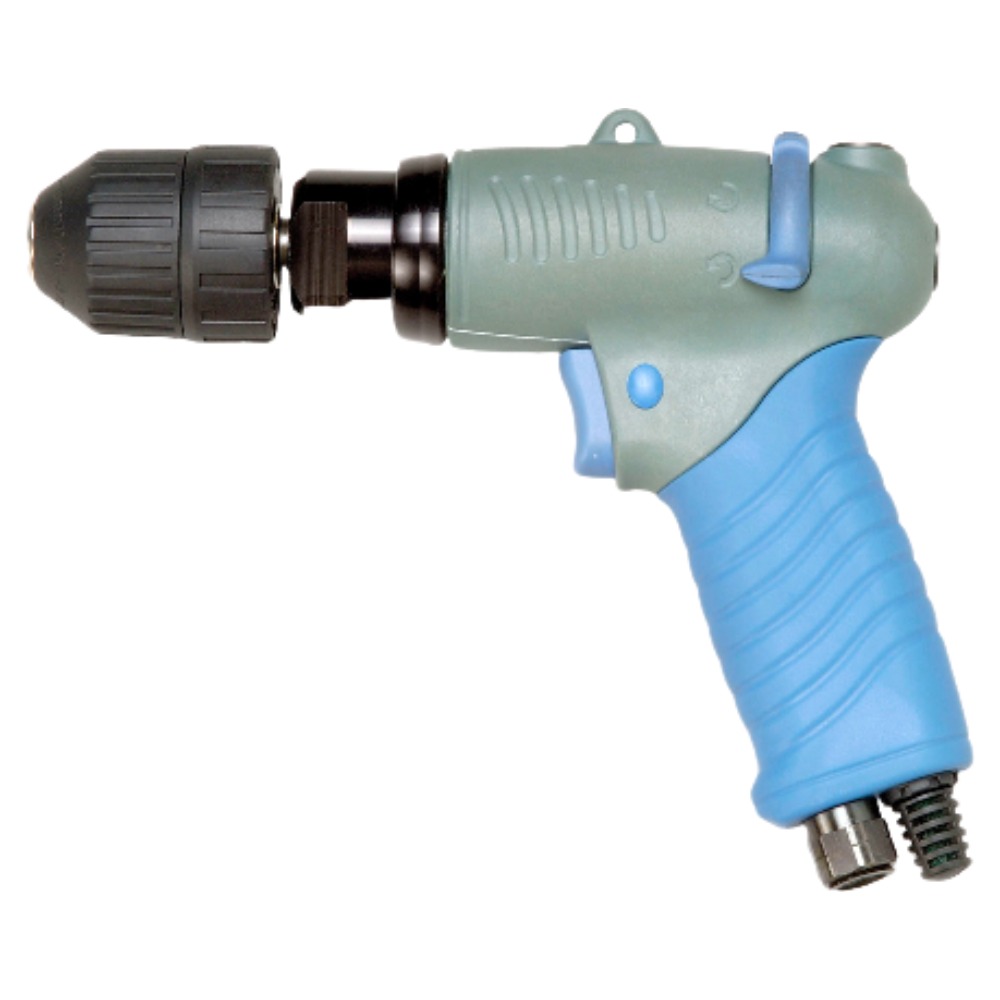

R-PD Series | Gun-Type Direct Air Drill
Model
R39PD,R45PD,R48PD,R58PD,R62PD
Application
Woodworking tools (including metalworking)
◼ 360° Multi-Directional Exhaust
Features an all-around exhaust system with 360-degree rotation adjustment, providing operators with maximum positioning flexibility and convenience.
◼ Versatile Multi-Functional Operation
The specialized 3-in-1 chuck design allows for quick and effortless switching between bits and drills, seamlessly integrating drilling, fastening, and tapping into one tool.
◼ Ergonomic Lightweight Construction
Pioneers a dual-color ergonomic grip paired with a specialized lightweight composite housing, delivering optimal balance and a comfortable hold while drastically reducing tool weight.

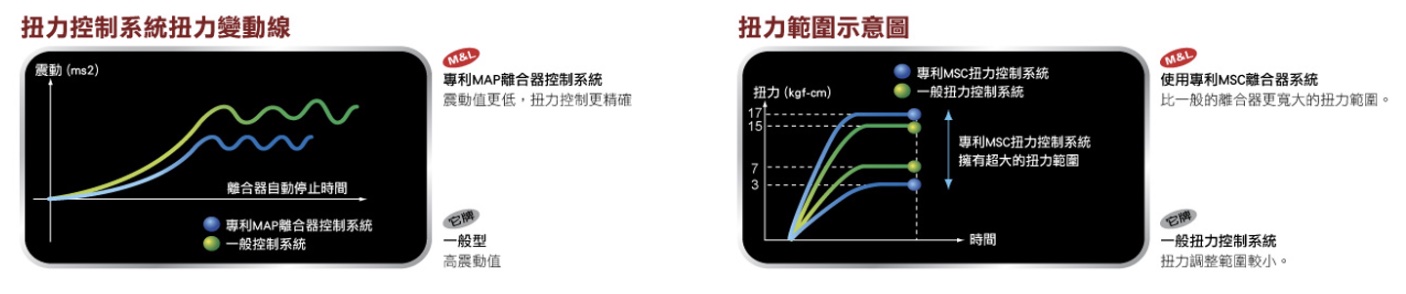

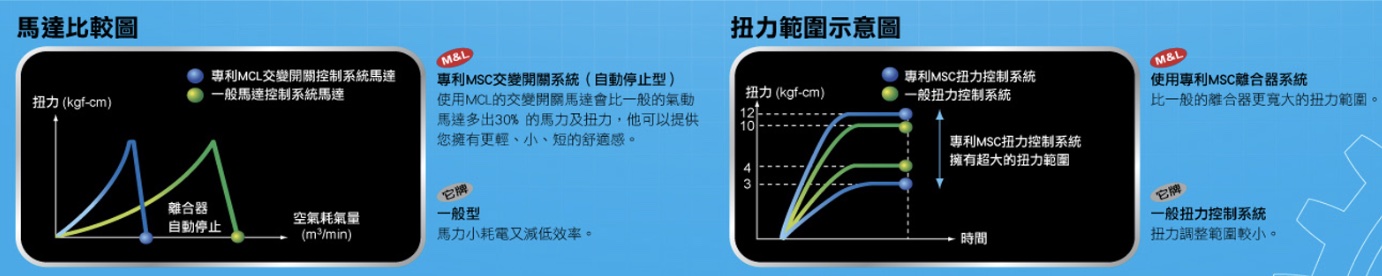

◼ Patented High-Output Motor & Clutch
Utilizes a patented low-vibration clutch and a high-tech patented motor to deliver 40% more horsepower and torque than competing brands, significantly accelerating line productivity.
| Model | Speed | Weight | Length | Height | Diameter | Max Capcity |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Chuck Size |
| rpm | kg | mm | mm | mm | mm | mm | m³/min | Nm | ||
| R39PD | 2900 | 0.58 | 140 | 142 | 36 | 5 | 5.0 | 0.28 | 5.0 | 1/4" |
| R45PD | 1600 | 0.58 | 140 | 152 | 36 | 6 | 5.0 | 0.28 | 7.0 | 3/8" |
| R48PD | 1700 | 0.92 | 159 | 154 | 43 | 6 | 8.0 | 0.55 | 7.0 | 3/8" |
| R58PD | 750 | 0.92 | 159 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 | 3/8" |
| R62PD | 750 | 1.01 | 159 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 | 1/2" |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
