QG-DPN Series | Gun-type Clutch Air Drill
Model
QG39DPN,QG45DPN,QG48DPN,QG58DPN,QG62DPN
Application
Woodworking tools (including metalworking)
◼ Ergonomic & Non-Slip Grip
Features an ultra-lightweight housing paired with an ergonomic, specialized material grip to deliver a highly comfortable and exceptional anti-slip experience.
◼ Versatile Multi-Functional Operation
The specialized 3-in-1 chuck design allows for quick and effortless bit replacement, seamlessly integrating drilling, fastening, and tapping into a single tool.
◼ Optional Multi-Directional Inlet & Standard Bottom Exhaust
Features an optional multi-directional air inlet paired with a standard low-noise bottom exhaust design, providing a highly flexible and whisper-quiet work environment.
◼ Patented High-Tech MCL Motor System

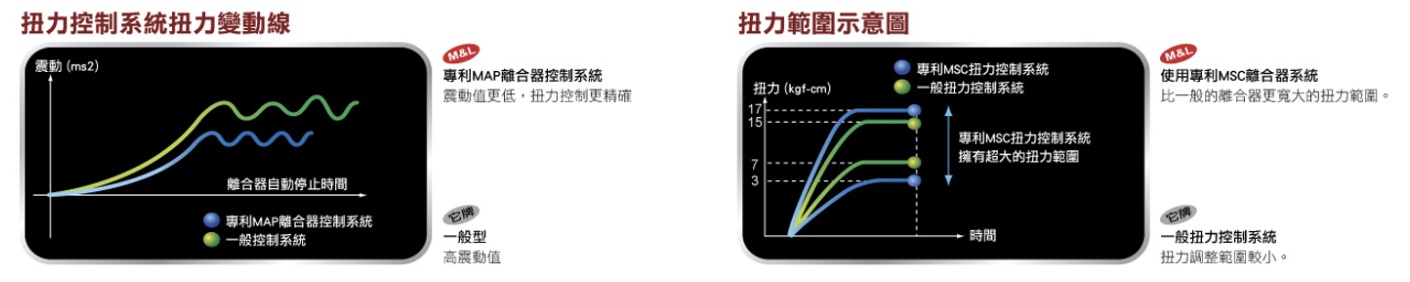

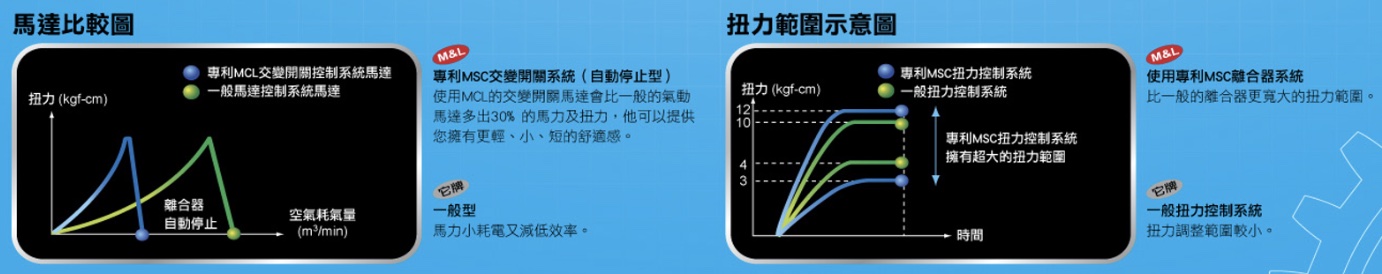

Employs a patented high-tech MCL motor system combined with a patented low-vibration clutch to deliver high-efficiency output with powerful horsepower and torque.
| Model | Speed | Weight | Length | Height | Diameter | Max Capcity |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Chuck Size |
| rpm | kg | mm | mm | mm | mm | mm | m³/min | Nm | ||
| QG39DPN | 1600 | 0.75 | 165 | 142 | 36 | 5 | 5.0 | 0.28 | 5.0 | 1/4" |
| QG45DPN | 750 | 0.75 | 165 | 152 | 36 | 6 | 5.0 | 0.28 | 7.0 | 3/8" |
| QG48DPN | 1700 | 1.10 | 214 | 154 | 43 | 6 | 8.0 | 0.55 | 7.0 | 3/8" |
| QG58DPN | 750 | 1.10 | 214 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 | 3/8" |
| QG62DPN | 750 | 1.10 | 214 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 | 1/2" |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
