R-SDP Series | Pistol-Type Trigger Pneumatic Wrench - Square Head
R-SDP Series | Pistol-Type Trigger Pneumatic Wrench - Square Head

R-SDP Series | Pistol-Type Trigger Pneumatic Wrench - Square Head

Model

R48SDP, R50SDP, R55SDP, R60SDP, R65SDP, R68SDP

Application

Assembly line tools

Product Inquiry
Model Speed Weight Length Diameter Air Pressure Min Hose Diameter Air Consumption Torque Range Accuracy Fastening Capacity
rpm g mm mm Kg/cm³ mm m³/min Kgf-cm % Machine Screw Self Tapping Screw
R48SDP 1700 980 215 39 6.0 8.0 0.55 7-50 ±3 M3.2-M6.0 M2.6-M4.8
R50SDP 1400 980 215 39 6.0 8.0 0.55 10-60 ±3 M3.5-M6.2 M2.9-M5.0
R55SDP 1000 980 215 39 6.0 8.0 0.55 12-75 ±3 M3.8-M6.8 M3.0-M5.5
R60SDP 550 980 215 39 6.0 8.0 0.55 30-110 ±3 M5.0-M7.7 M4.1-M6.2
R65SDP 300 1100 215 39 6.0 8.0 0.55 30-180 ±3 M5.0-M9.2 M4.1-M7.1
R68SDP 250 1250 215 39 6.0 8.0 0.55 50-280 ±3 M6.0-M10.8 M4.8-M8.6

▲Specifications are subject to change without notice.

★【Customization】Custom specifications can be made to customer requirements. Please contact us for details.

▼Tool Features

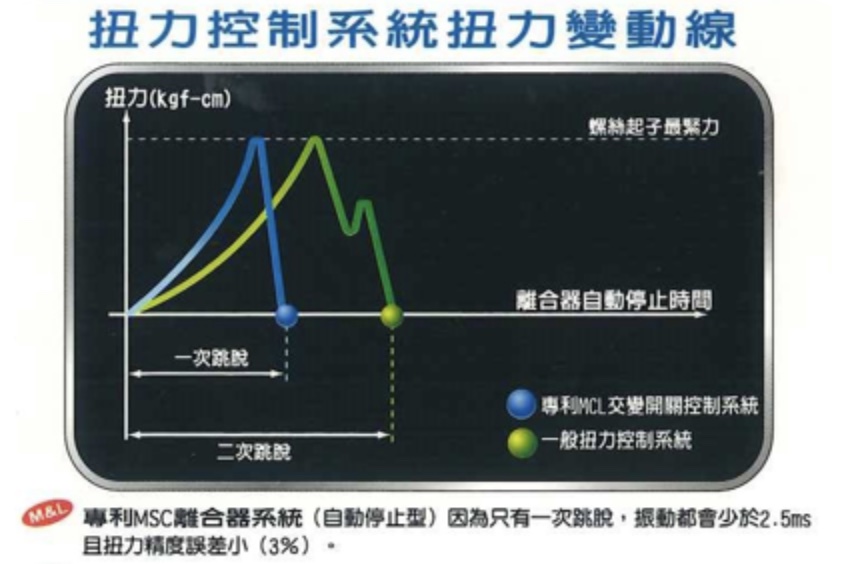

1. Precision: Patented interlocking track clutch system ensures one-time disengagement and low error. Torque repeatability accuracy is ±3% for straight/wrench type and ±5% for bent wrench type.

2. **Economy:** Utilizing an ultra-wide torque range, one motor can replace multiple motors, and boasts several patents, extending the lifespan of the motor blades.

3. **Aesthetics:** Designed with a human-centered approach, incorporating aesthetics, ergonomics, and mechanical engineering principles, resulting in a professional and aesthetically pleasing appearance.

4. **Technology:** A unique mechanical structure and patented motor design ensure low noise, low vibration, and high precision.This high-tech patented alternating current switching motor delivers 30% more horsepower than comparable motors.

5. Honors: Awarded the 2002 Japan Osaka Good Tool Award.

6. Quick: Quickly change screwdriver bits by pressing down the screwdriver cap.
7. Trigger Locking Function: M&L's patented trigger locking function (SDP type only). The same screwdriver offers two operating modes: push-down or push-button (preventing screw surface damage and increasing operational safety), improving screw fastening quality.

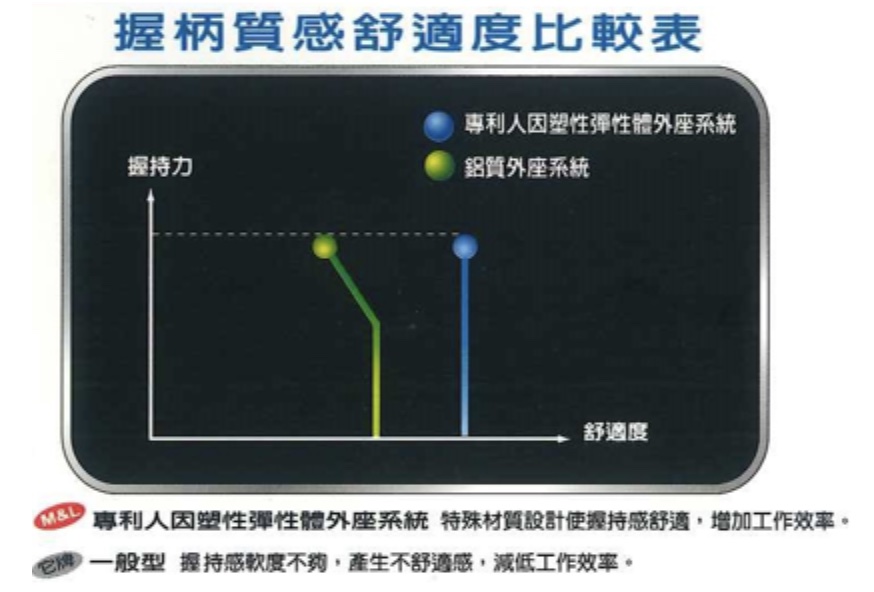

8. Comfort: A pioneering ergonomic dual-color grip, combining ergonomic anti-slip properties with a pleasing visual appearance, providing optimal balance and comfortable handling.

9. Ergonomic body and special new material handle: 25%~44% lighter than comparable models.

10. Easy to operate: A pioneering ergonomic soft wrench, allowing operators to easily tighten screws.

11. All-around venting: Venting direction can be changed 360°.

12. Top and bottom air intake function: Upward and downward air intake directions can be changed (SDP down-pressure type only), making production line space more flexible.

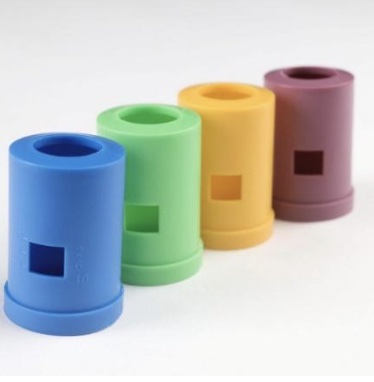

13. Color-coded torque management system (optional): M&L offers a new and unique torque management method, using color coding to manage torque differences as a production line torque management system, applicable to all R-series tools. By selecting different colors and corresponding torque values, it can be applied to the production line for effective torque quality management.
