QG-PS Series | Pistol Grip Manual-Start Air Screwdriver
Model
QG39PS,QG48PS,QG58PS
Application
Woodworking Tools (including metalworking)
■ Quick-Change Pull-Sleeve Design
The all-new pull-to-release shaft sleeve design allows for lightning-fast bit replacement,
significantly enhancing operational efficiency.
■ Aluminum & Hybrid Rubber Grip
Crafted from a premium blend of aluminum and hybrid rubber to deliver exceptional durability,
wear resistance, and a comfortable, anti-slip grip.
■ Multi-Directional Air Inlet & Optional Bottom Exhaust
Features a flexible multi-directional air inlet with an optional bottom exhaust design, maximizing
maneuverability while drastically reducing workspace noise and exhaust interference.
■ Next-Gen Patented EV Motor
Equipped with our second-generation patented EV motor, boosting horsepower by 10% and
power output by 30%, all packed into a streamlined design that reduces tool weight by 25%.
| Model | Speed | Weight | Length | Height | Diameter | Max Capacity |
Min Air Hose Bore |
Air Consumption |
Max Torque |
| rpm | kg | mm | mm | mm | mm | mm | m³/min | Nm | |
| QG39PS | 1600 | 0.6 | 160 | 142 | 36 | 5 | 5.0 | 0.28 | 5.0 |
| QG48PS | 1700 | 0.84 | 210 | 154 | 43 | 6 | 8.0 | 0.55 | 7.0 |
| QG58PS | 750 | 0.84 | 210 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
■ Multi-direction Air-inlet feature Featuring a professional multi-inlet design
Top (Optional), Bottom, and Rear (Optional). This enhances workspace flexibility, allowing operators to
adjust the air intake direction to suit specific application needs.
adjust the air intake direction to suit specific application needs.

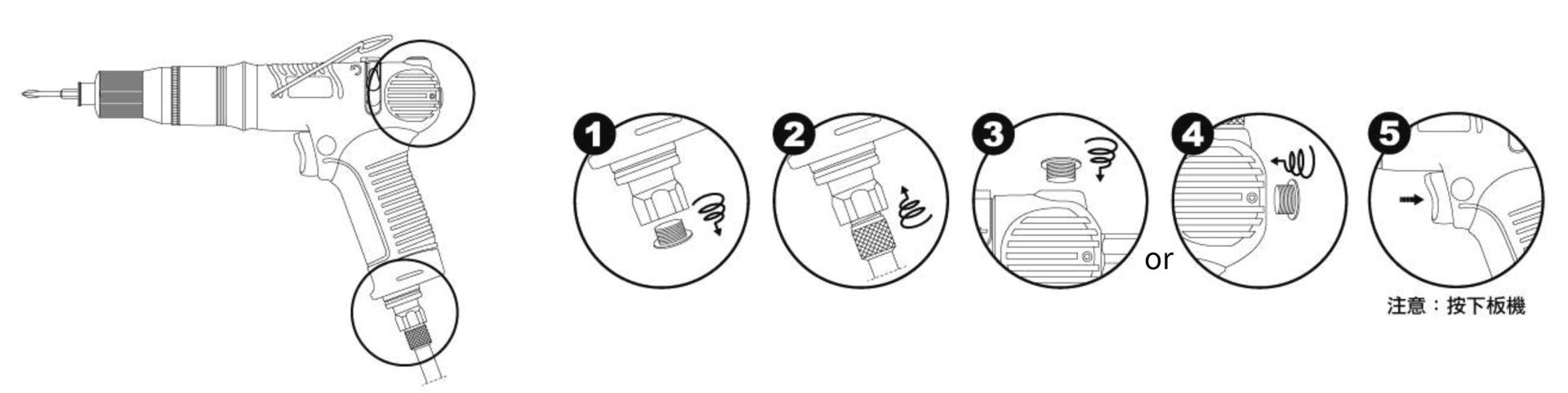

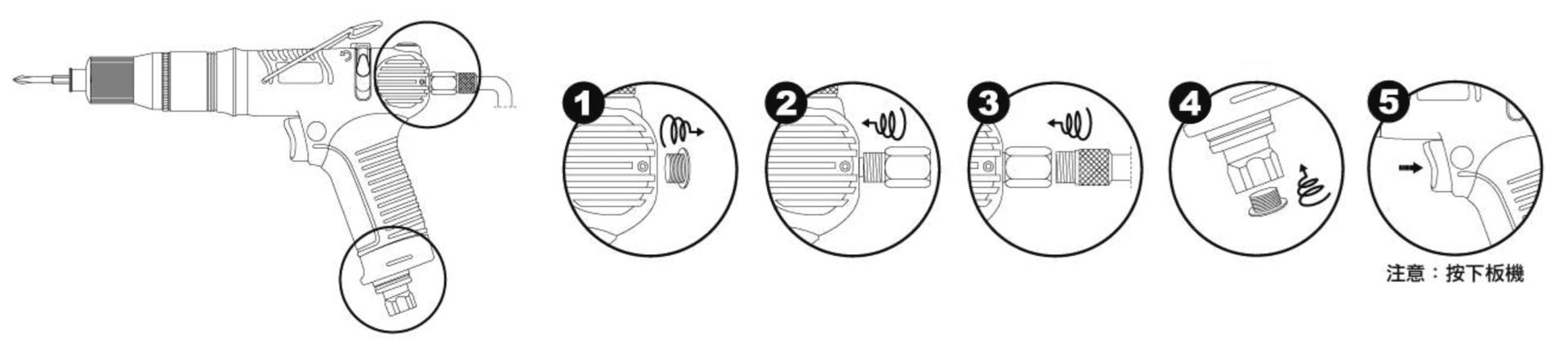

■ Air Inlet Orientation Adjustment
| Lower Air Inlet Change to Upper | ||||||||||||
 |
| Switching from Bottom to Side Air Inle | ||||||||||||
 |
| Reverting to Bottom Air Inlet (Factory Standard) | ||||||||||||
 |
||||||||||||
