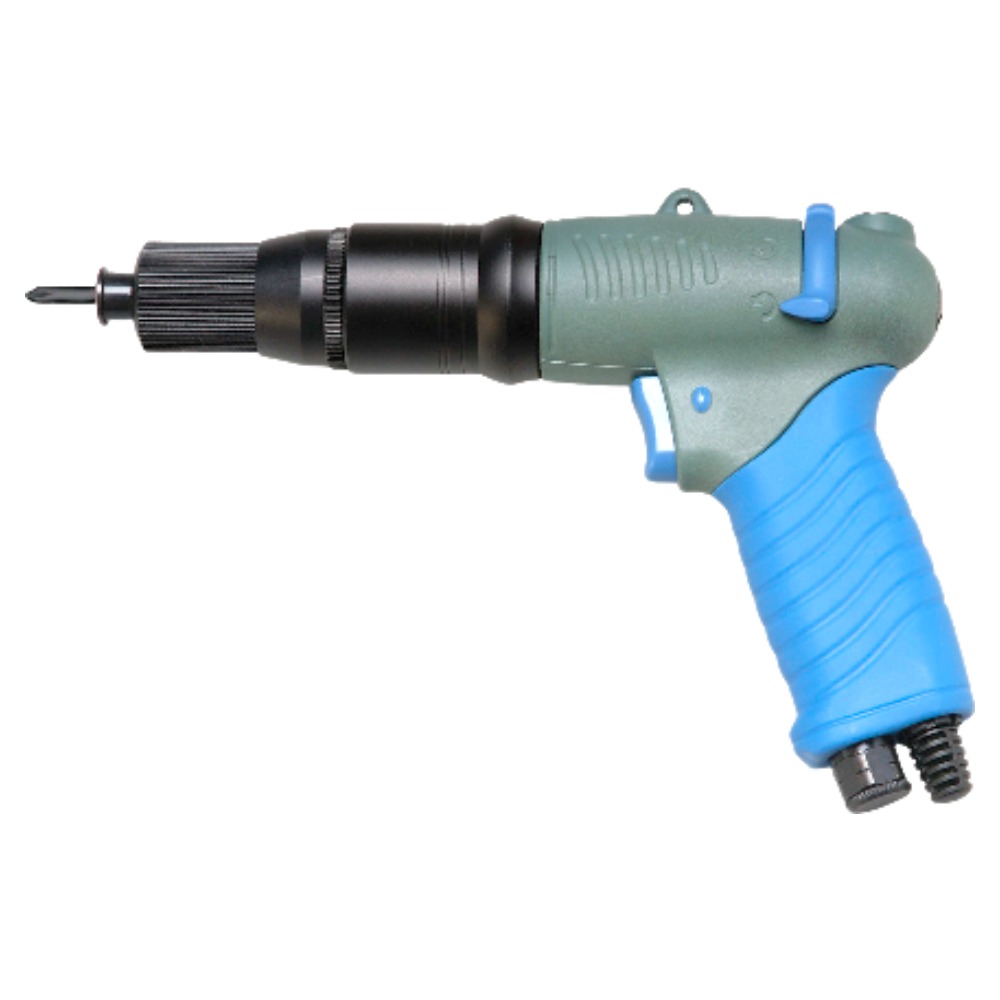

QG-PBP | Pistol Grip Air Screwdriver (Push-to-Start or Push + Trigger Start)
Model
QG35PBP,QG38PBP,QG41PBP,QG47PBP,QG48PBP,QG50PBP,QG55PBP,QG60PBP,QG65PBP,QG68PBP
Application
Aerospace Industry Tools, Assembly Line Tools
■ Interlocking Track Clutch System
Ensures minimal error and exceptional repeatability to achieve highly precise fastening results.
■ Multi-Directional Inlet & Bottom Exhaust
Enhances operational flexibility while significantly reducing noise and minimizing exhaust disruption.
■ Patented Wide Torque Range & Quick-Change System
Equipped with a patented torque series suitable for a wide range of applications, supporting rapid bit changes while extending motor vane lifespan.
■ One-Handed Reverse & Lightweight Streamlined Body
Allows for effortless one-handed forward/reverse switching, while the streamlined body reduces weight by 25% to deliver superior handling and control.
■ Oil-Lubricated vs. Oil-Free: Lubrication and Protection
| Item | Oil tools | Oil-Free tools |
|---|---|---|
| Maintenance Methods | Daily regular oiling | The oiling cycle is about 7 Days(168hours) |
| Oil Specifications | Use Spindle Oil or Standard Air Tool Oil |
Use M&L [High Speed Spindle Oil(CP-OIL01) ] |
| Maintenance Accessibility | Readily Available Oil & Quick Maintenance |
Significantly Reduced Maintenance Frequency & Time Savings |
| Extended Service Life | Reduced Internal Wear & Extended Service Life |
Stable Lubrication for Continuous Long-Term Operation |
| Working Efficiency | Consistent Torque & Smooth Operation |
Lower Downtime Risk & Enhanced Line Productivity |
| Value Proposition | Simplified Maintenance with Controllable Costs |
The Ultimate Choice for Low Maintenance & High Efficiency |
■ Two Actuation Modes
Mode 1: Direct Push-to-Start (Trigger Locked).
Engage the trigger lock for direct push-to-start operation.
Mode 2: Safety Interlock Start (Mistake-Proofing).
Requires both trigger activation and tool engagement to prevent bit slippage and screw head damage; this
safety mechanism may add approximately 1 second to the start-up time.
[Note: The most common operation is pushing the tool down before pressing the trigger.]
safety mechanism may add approximately 1 second to the start-up time.
[Note: The most common operation is pushing the tool down before pressing the trigger.]
| Model | Speed | Weight | Length | Diameter | Air Pressure |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Standard Deviation |
Fastening Capacity | |
| rpm | g | mm | mm | kg/cm² | mm | m³/min | kgf-cm | % | Machine Screw |
Tapping Screw |
|
| QG35PBP | 2200 | 640 | 180 | 33 | 6.0 | 5.0 | 0.28 | 3-20 | ± 3 | M2.5-M4.5 | M2.0-M3.5 |
| QG38PBP | 1800 | 640 | 180 | 33 | 6.0 | 5.0 | 0.28 | 3-25 | ± 3 | M2.5-M4.8 | M2.0-M3.8 |
| QG41PBP | 1000 | 640 | 180 | 33 | 6.0 | 5.0 | 0.28 | 5-35 | ± 3 | M2.8-M5.0 | M2.3-M4.0 |
| QG47PBP | 550 | 640 | 180 | 33 | 6.0 | 5.0 | 0.28 | 10-50 | ± 3 | M3.5-M6.0 | M2.9-M4.8 |
| QG48PBP | 1700 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 7-50 | ± 3 | M3.2-M6.0 | M2.6-M4.8 |
| QG50PBP | 1400 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 10-60 | ± 3 | M3.5-M6.2 | M2.9-M5.0 |
| QG55PBP | 1000 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 12-75 | ± 3 | M3.8-M6.8 | M3.0-M5.5 |
| QG60PBP | 550 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 30-110 | ± 3 | M5.0-M7.7 | M4.1-M6.2 |
| QG65PBP | 300 | 1100 | 215 | 39 | 6.0 | 8.0 | 0.55 | 30-180 | ± 3 | M5.0-M9.2 | M4.1-M7.1 |
| QG68PBP | 250 | 1250 | 215 | 39 | 6.0 | 8.0 | 0.55 | 50-280 | ± 3 | M6.0-M10.8 | M4.8-M8.6 |
▲ Tool length does not include the air inlet fitting. Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
■ Multi-direction Air-inlet feature Featuring a professional multi-inlet design
Top (Optional), Bottom, and Rear (Optional). This enhances workspace flexibility, allowing operators to
adjust the air intake direction to suit specific application needs.
adjust the air intake direction to suit specific application needs.
■ Air Inlet Orientation Adjustment
| Lower Air Inlet Change to Upper | ||||||||||||
 |
| Switching from Bottom to Side Air Inle | ||||||||||||
 |
| Reverting to Bottom Air Inlet (Factory Standard) | ||||||||||||
 |
||||||||||||
