Angle Wrenches

UW600 Series | Open-end Wrench
UW600 Series | Open-end Wrench

UW600 Series | Open-end Wrench

Model

UW600-8,UW600-10,UW600-14,UW600-22,UW800

Application

Aerospace industry tools, assembly line tools, customized tools

● Patented Start Switch for Easy Success
Prevents operational errors. Supports both tightening (button up) and loosening (button down) for full-opening gears; semi-opening gears are for tightening only.
● Professional Tool Operation Sequence

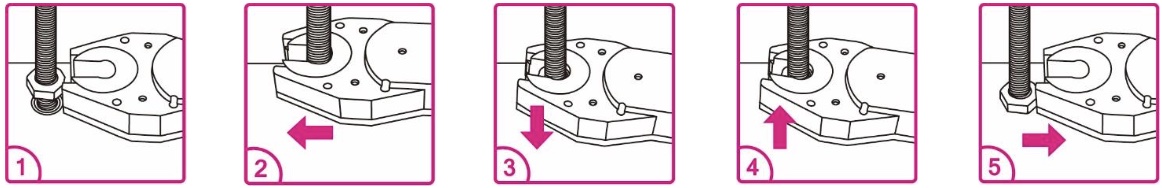

Operation Steps
1. Rotate the gear to the open position.
2. Slide the tool onto the fastener.
3. Press the trigger and button simultaneously to tighten.
4. Reset the gear to the open position before lifting the tool.
5. The tool exits as the gear returns to the starting point at a controlled speed.
● External Torque Adjustment Design
Allows operators to easily adjust to the specific torque required for the production line, ensuring precision and efficiency.
● High-Performance Pneumatic Motor
Provides superior power with a lightweight design, minimizing operator fatigue while maintaining high-speed operation.
Model Torque Range Speed Open Gear Size Housing Size Weight
Nm rpm mm mm kg
UW600-8 3.0-8.0 230 6.(8).9.10.11.12 42 2.0
UW600-10 5.0-17.0 230 6.8.9.(10).11.12 42 2.0
UW600-14 5.0-17.0 230 13.(14) 56 2.2
UW600-22 7.0-24.0 170 15.17.19.21.(22) 56 2.2
*Specifications are subject to change without prior notice.
Housing Dimensions
42mm - Housing for Open Spanner 56mm - Housing for Open Spanner

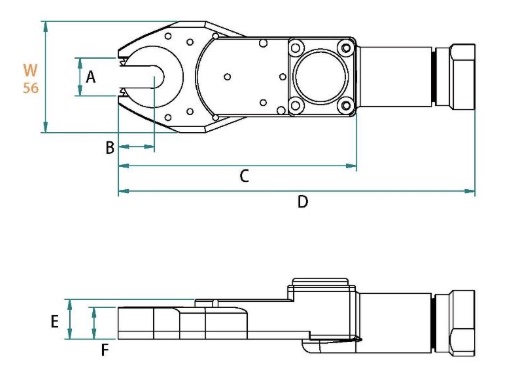

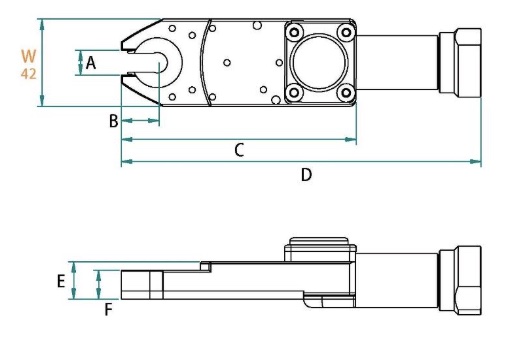

42mm Diagram 56mm Diagram
Model A B C D E F
mm mm mm mm mm mm
UW600-8 12 17.26 112.9 173 18 14
UW600-10 12 17.26 112.9 173 18 14
UW600-14 19 17.26 124.5 181 20 16
UW600-22 19 17.26 124.5 181 20 16
Open Gear Size (Available Individually)
Semi-Open Gear Full-Open Gear Hex Size (mm) Housing Size (mm)
1K2306 1S2306 6 42
1K2308 1S2308 8
1K2309 1S2309 9
1K2310 1S2310 10
1K2311 1S2311 11
1K2312 1S2312 12
1K2305 1S2305 13 56
1K2304 1S2304 14
1K2315 1S2315 15
1K2303 1S2303 17
1K2319 1S2319 19
1K2321 1S2321 21
1K2301 1S2301 22
