A-PBF Series | Straight Oil-Free Low-Reaction Push-Start Air Screwdriver
Model
A8212PBF,A8362PBF,A8392PBF,A8412PBF,A8462PBF,A8512PBF,A8562PBF,A8612PBF,A8662PBF,A8692PBF
Application
Aerospace Industry Tools, Assembly Line Tools
■ Patented High-Precision Clutch
Equipped with a patented clutch design that guarantees exceptional torque accuracy within ±3%.
■ Quiet, Stable, and Reduced Reaction Force
Ensures a quieter and more stable operation, effectively reducing reaction force by 20% for superior control.
■ Intuitive External Torque Adjustment
Features an external torque adjustment design, making control and setting modifications more intuitive and convenient.
■ High-Efficiency Oil-Free Motor
Powered by a high-efficiency oil-free motor that delivers robust output, long-lasting durability, and reliable performance.
| Model | Speed | Weight | Length | Diameter | Noise | Air Pressure |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Standard Deviation |
Fastening Capacity | |
| rpm | g | mm | mm | ±dBA | kg/cm² | mm | L/s | Nm | % | Machine Screw |
Tapping Screw |
|
| A8212PBF | 1000 | 600 | 220 | 40 | 67 | 6.0 | 5.0 | 4.6 | 0.1-1.2 | ± 2 | M1.7-M3.7 | M1.5-M3.1 |
| A8362PBF | 2200 | 600 | 220 | 40 | 67 | 6.0 | 5.0 | 4.6 | 0.5-2.5 | ± 2 | M2.2-M4.5 | M1.7-M3.5 |
| A8392PBF | 1800 | 600 | 220 | 40 | 67 | 6.0 | 5.0 | 4.6 | 0.5-3.0 | ± 2 | M2.2-M4.7 | M1.7-M3.8 |
| A8412PBF | 1000 | 610 | 220 | 40 | 67 | 6.0 | 5.0 | 4.6 | 0.5-4.0 | ± 2 | M2.8-M5.0 | M2.2-M4.0 |
| A8462PBF | 800 | 610 | 220 | 40 | 67 | 6.0 | 5.0 | 4.6 | 1.0-5.0 | ± 2 | M3.5-M6.0 | M2.8-M4.9 |
| A8492PBF | 1700 | 950 | 260 | 50 | 72 | 6.0 | 8.0 | 9.1 | 1.0-7.0 | ± 2 | M3.5-M6.6 | M2.8-M5.7 |
| A8512PBF | 1400 | 1050 | 260 | 50 | 72 | 6.0 | 8.0 | 9.1 | 1.0-8.0 | ± 2 | M3.5-M6.8 | M2.8-M5.9 |
| A8562PBF | 1000 | 1010 | 260 | 50 | 72 | 6.0 | 8.0 | 9.1 | 1.0-9.0 | ± 2 | M4.1-M7.5 | M3.1-M6.2 |
| A8612PBF | 550 | 1130 | 260 | 50 | 72 | 6.0 | 8.0 | 9.1 | 3.0-12.0 | ± 2 | M5.0-M7.8 | M4.0-M6.8 |
| A8662PBF | 300 | 1150 | 260 | 50 | 72 | 6.0 | 8.0 | 9.1 | 3.0-20.0 | ± 2 | M5.0-M9.8 | M4.0-M7.8 |
| A8692PBF | 250 | 1180 | 260 | 50 | 72 | 6.0 | 8.0 | 9.1 | 5.0-28.0 | ± 2 | M6.0-M10.8 | M4.8-M8.6 |
＊ Tool length does not include the air inlet fitting.
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
● Output Drive
| 1/4" Hex | 5mm | 1/4" Square (FOR 8212~8462 type) |
3/8" Square (FOR 8492~8692 type) |
| PBF | PAF | PBSF | PBSF |
HOT PRODUCTS
-

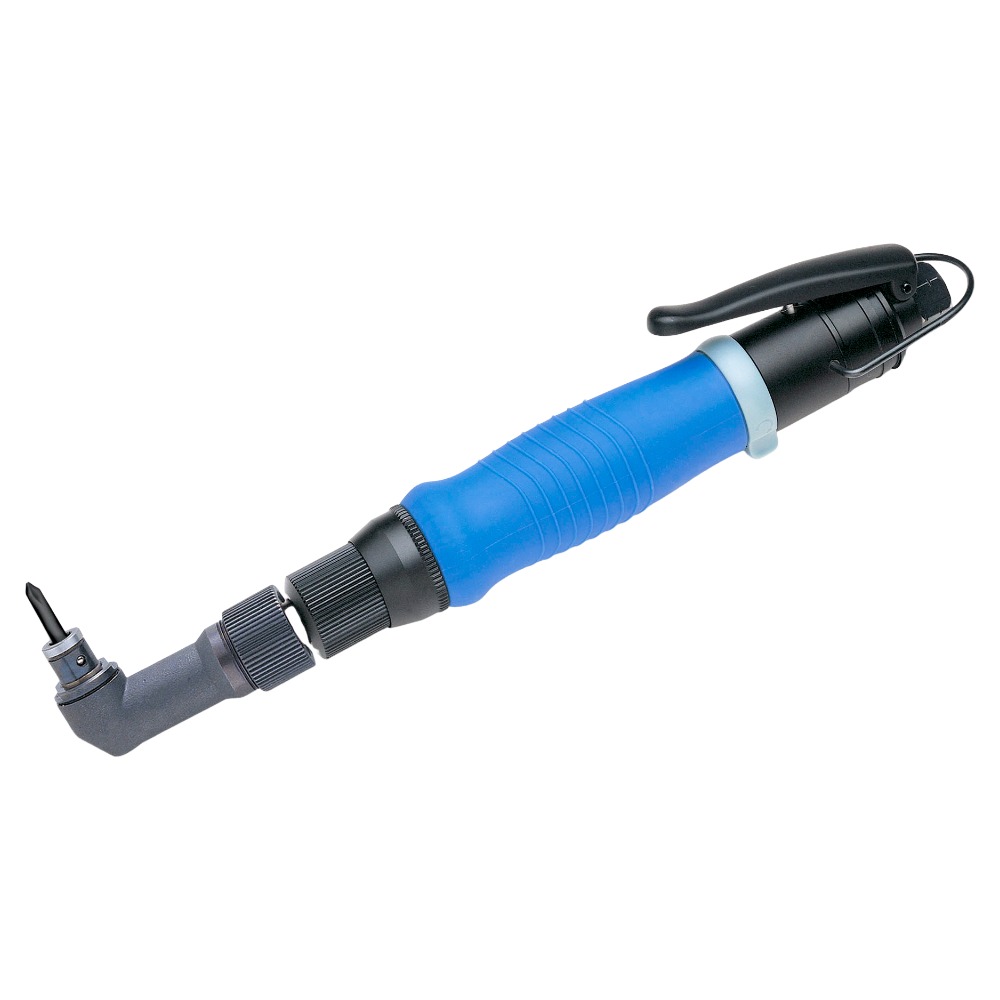

A-AB Series | Angle Type Air Screwdriver
-
