T-MPC Series | Automation Air Screwdriver (Single-Hole Push Start-Forward-Only)
Model
T10MPC,T20MPC,T30MPC,T35MPC,T38MPC,T40MPC,T45MPC,T48MPC,T50MPC,T55MPC,T60MPC,T65MPC,T68MPC
Application
Assembly Line Tools
■ External Torque Adjustment Design
Enables engineers to easily set torque values, ensuring precise and reliable control over the settings.
■ Push-to-Start Mechanism (Forward Only)
Activates the tool via a push-to-start mechanism and supports forward-only (tightening) mode to boost operational efficiency.
■ M5 Signal Connector for Status Detection
Enables start and stop tracking via an M5 connector, making it ideal for cycle counting and detecting potential screw stripping issues.
■ Auto Shut-Off Motor with Air-Cut Valve
Stops the air motor and automatically cuts off the air supply via the valve once the preset torque load is reached, ensuring torque accuracy and safety.
| Model | Speed | Weight | Diameter | Air Pressure |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Standard Deviation |
Fastening Capacity | |||

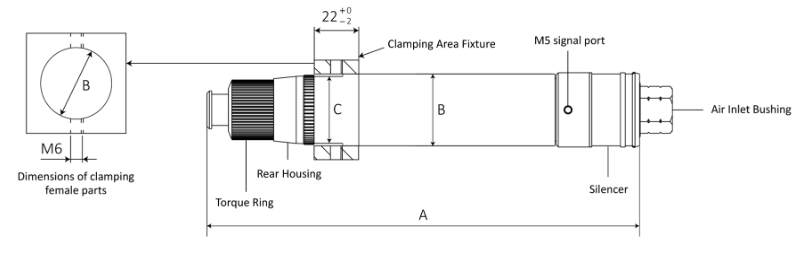

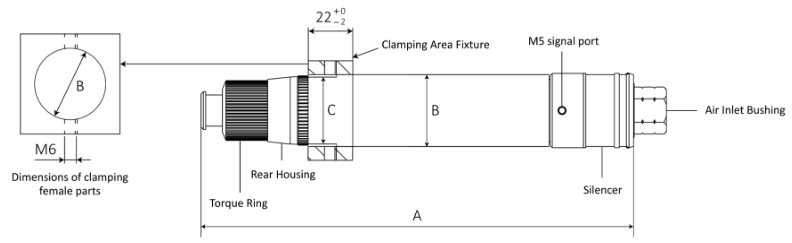

| A | B | C | Machine Screw |
Tapping Screw |
||||||||
| rpm | g | mm | mm | mm | kg/cm² | mm | m³/min | kgf-cm | % | |||
| T10MPC | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.20 | 0.5-2 | ± 3 | M1.4-M2.2 | M1.1-M1.7 |
| T20MPC | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.20 | 1-8 | ± 3 | M1.7-M3.4 | M1.4-M2.7 |
| T30MPC | 1800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-17 | ± 3 | M2.5-M4.3 | M2.0-M3.4 |
| T35MPC | 2200 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-20 | ± 3 | M2.5-M4.5 | M2.0-M3.5 |
| T38MPC | 1800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-25 | ± 3 | M2.5-M4.8 | M2.0-M3.8 |
| T40MPC | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 5-30 | ± 3 | M2.8-M5.0 | M2.3-M4.1 |
| T45MPC | 800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.30 | 8-40 | ± 3 | M3.4-M5.6 | M2.7-M4.5 |
| T48MPC | 1700 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 5-45 | ± 3 | M2.8-M5.8 | M2.3-M4.5 |
| T50MPC | 1400 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 7-50 | ± 3 | M3.2-M6.0 | M2.6-M4.8 |
| T55MPC | 1000 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 7-65 | ± 3 | M3.2-M6.5 | M2.6-M5.2 |
| T60MPC | 550 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 15-95 | ± 3 | M4.0-M7.2 | M3.3-M6.0 |
| T65MPC | 330 | 1200 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 30-180 | ± 3 | M5.0-M9.2 | M4.1-M7.1 |
| T68MPC | 250 | 1200 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 50-280 | ± 3 | M6.0-M10.8 | M4.8-M8.6 |
＊ Tool length does not include the air inlet fitting.
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
● Output Drive
| 1/4" Hex | 5mm | 1/4" Square (FOR 10~45 type) |
3/8" Square (FOR 48~68 type) |
| MPC | MPAC | MPWC | MPWC |

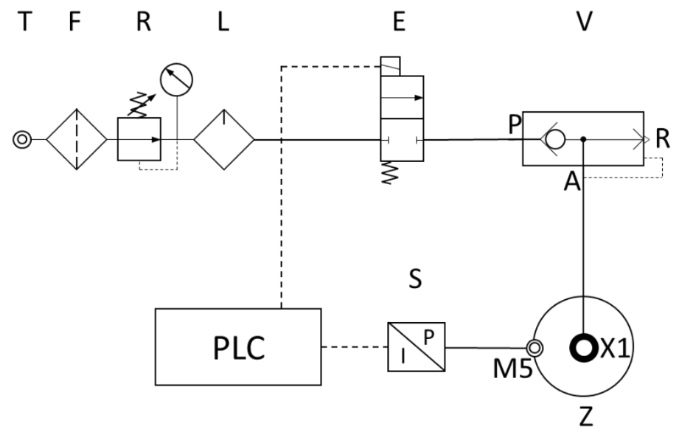

【Installation Guide】
● By connecting with M5 signal port, PLC automation system can precise control the torque to avoid any float, loose or miss occurred.
● Air screwdriver clutch will be released and motor will stop automatically when load reach the preset torque.
● Water filter, pressure regulator & oiler are the devices required upon tube configuration.
● In order to assure the tube from pressure interference, installation of quick exhaust valve is a must with the use of the air tool.
● Connect M5 signal port with pressure sensor.
【Notes】
| Code | Description | Code | Description |
| T | Pneumatic supply | V | Quick exhaust valve |
| F | Filter | S | M5 pressure sensor |
| R | Pressure regulator | Z | Pneumatic screwdriver |
| L | Oil fog lubricator | X1 | 1/4”PT black Hex Inlet(lock) |
| E | Solenoid valve | M5 | M5 signal port |
