A-LDN Series | Straight Clutch Type Air Drill
Model
A48LDN,A58LDN
Application
Woodworking tools (including metalworking)
◼ Patented Low-Vibration Clutch
Employs a patented low-vibration clutch mechanism that significantly enhances
operational stability and torque precision.
◼ Ergonomic & Non-Slip Dual-Ribbed Grip
The outer handle features a patented ergonomic anti-slip design with dual-ribbed
textures, seamlessly blending visual aesthetics with a comfortable hold.
◼ Versatile Multi-Functional Operation
Allows for quick and effortless switching between bits and drills, integrating drilling,
fastening, and tapping into a single, user-friendly tool.

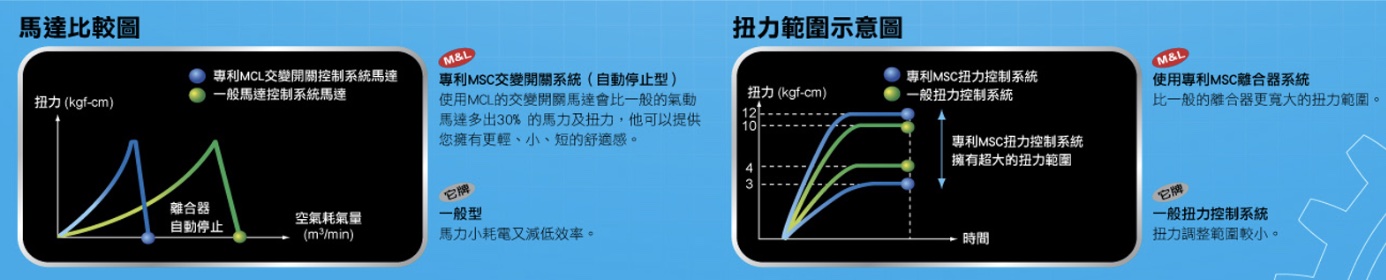

◼ Second-Gen Patented MCL System
Equipped with our second-generation patented MCL semi-automatic alternating switch
system, boosting motor horsepower and torque by approximately 40% compared to
competing brands.
| Model | Speed | Weight | Length | Diameter | Max Capcity |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Chuck Size |
| rpm | kg | mm | mm | mm | mm | m³/min | Nm | ||
| A48LDN | 1700 | 1.0 | 244 | 43 | 6 | 8.0 | 0.55 | 7.0 | 3/8" |
| A58LDN | 750 | 1.0 | 244 | 43 | 7 | 8.0 | 0.55 | 13.0 | 3/8" |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
