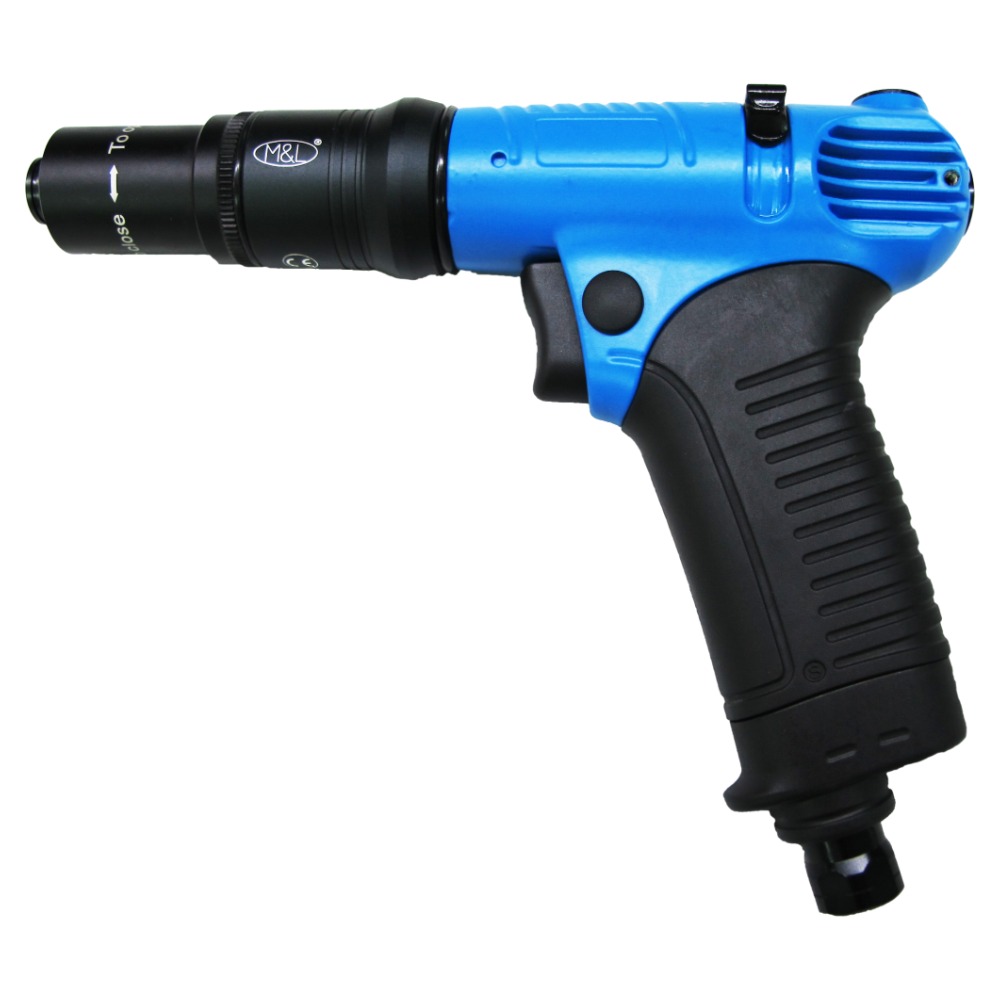

QG-BBP Series | Pistol Grip Air Screwdriver (Trigger Start)
Model
QG35BBP,QG38BBP,QG41BBP,QG47BBP,QG48BBP,QG50BBP,QG55BBP,QG60BBP,QG65BBP,QG68BBP
Product Application
Aerospace Industry Tools, Assembly Line Tools
■ One-Handed Reverse & Multi-Directional Inlet
Features one-handed forward/reverse switching and a multi-directional air inlet joint design to optimize workspace flexibility.
■ Patented Technology & High-Precision Torque
Utilizes patented technology to effectively extend motor lifespan while ensuring an exceptionally precise ±3% torque repeatability.
■ Ergonomic Grip with Low Noise & Vibration
Combines an ergonomic handle with a low-noise, low-vibration motor to significantly enhance the overall user operating experience.
■ Lightweight Streamlined Design with Quick-Change Chuck
Boasts a streamlined exterior that reduces weight by 25%, paired with a quick-release bit holder to achieve maximum workflow efficiency.
■ Oil-Lubricated vs. Oil-Free: Lubrication and Protection
| Item | Oil tools | Oil-Free tools |
|---|---|---|
| Maintenance Methods | Daily regular oiling | The oiling cycle is about 7 Days(168hours) |
| Oil Specifications | Use Spindle Oil or Standard Air Tool Oil |
Use M&L [High Speed Spindle Oil(CP-OIL01) ] |
| Maintenance Accessibility | Readily Available Oil & Quick Maintenance |
Significantly Reduced Maintenance Frequency & Time Savings |
| Extended Service Life | Reduced Internal Wear & Extended Service Life |
Stable Lubrication for Continuous Long-Term Operation |
| Working Efficiency | Consistent Torque & Smooth Operation |
Lower Downtime Risk & Enhanced Line Productivity |
| Value Proposition | Simplified Maintenance with Controllable Costs |
The Ultimate Choice for Low Maintenance & High Efficiency |
■ Actuation: Trigger Start
| Model | Speed | Weight | Length | Diameter | Air Pressure |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Standard Deviation |
Fastening Capacity | |
| rpm | g | mm | mm | kg/cm² | mm | m³/min | kgf-cm | % | Machine Screw |
Tapping Screw |
|
| QG35BBP | 2200 | 640 | 180 | 33 | 6.0 | 5.0 | 0.28 | 3-20 | ± 3 | M2.5-M4.5 | M2.0-M3.5 |
| QG38BBP | 1800 | 640 | 180 | 33 | 6.0 | 5.0 | 0.28 | 3-25 | ± 3 | M2.5-M4.8 | M2.0-M3.8 |
| QG41BBP | 1000 | 640 | 180 | 33 | 6.0 | 5.0 | 0.28 | 5-35 | ± 3 | M2.8-M5.0 | M2.3-M4.0 |
| QG47BBP | 550 | 640 | 180 | 33 | 6.0 | 5.0 | 0.28 | 10-50 | ± 3 | M3.5-M6.0 | M2.9-M4.8 |
| QG48BBP | 1700 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 7-50 | ± 3 | M3.2-M6.0 | M2.6-M4.8 |
| QG50BBP | 1400 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 10-60 | ± 3 | M3.5-M6.2 | M2.9-M5.0 |
| QG55BBP | 1000 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 12-75 | ± 3 | M3.8-M6.8 | M3.0-M5.5 |
| QG60BBP | 550 | 980 | 215 | 39 | 6.0 | 8.0 | 0.55 | 30-110 | ± 3 | M5.0-M7.7 | M4.1-M6.2 |
| QG65BBP | 300 | 1100 | 215 | 39 | 6.0 | 8.0 | 0.55 | 30-180 | ± 3 | M5.0-M9.2 | M4.1-M7.1 |
| QG68BBP | 250 | 1250 | 215 | 39 | 6.0 | 8.0 | 0.55 | 50-280 | ± 3 | M6.0-M10.8 | M4.8-M8.6 |
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
● Multi-direction Air-inlet feature Featuring a professional multi-inlet design
Top (Optional), Bottom, and Rear (Optional). This enhances workspace flexibility, allowing operators to
adjust the air intake direction to suit specific application needs.
adjust the air intake direction to suit specific application needs.
● Air Inlet Orientation Adjustment
| Lower Air Inlet Change to Upper | ||||||||||||
 |
| Switching from Bottom to Side Air Inle | ||||||||||||
 |
| Reverting to Bottom Air Inlet (Factory Standard) | ||||||||||||
 |
||||||||||||
