T-MPB Series | Automation Air Screwdriver (Single-Hole Push Start)
Model
T10MPB,T20MPB,T30MPB,T35MPB,T38MPB,T40MPB,T45MPB,T48MPB,T50MPB,T55MPB,T60MPB,T65MPB,T68MPB
Application
Assembly Line Tools
■ Precision Torque Adjustment Ring
Enables easy torque adjustment via a precision ring, delivering simple and highly effective control over settings.
■ Automatic Shut-Off Pneumatic Motor
Automatically stops the air motor the moment the preset torque value is reached, significantly boosting operational accuracy.
■ Single-Port Push-to-Start with Manual Reverse
Features a single-port push-to-start mechanism paired with manual forward/reverse switching for simple and effortless operation.
■ Built for Automation and Harsh Environments
Ideally suited for automated machinery, offering a rugged, heavy-duty build that adapts to a wide variety of industrial environments.
| Model | Speed | Weight | Diameter | Air Pressure |
Min Air Hose Bore |
Air Consumption |
Torque Range |
Standard Deviation |
Fastening Capacity | |||

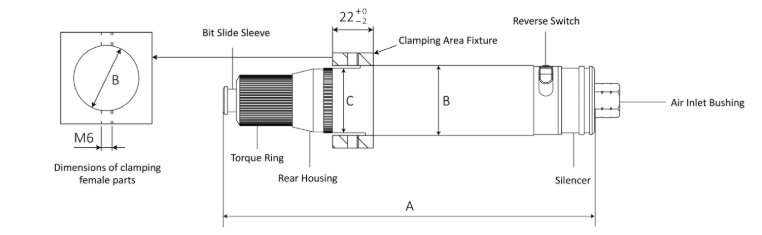

| A | B | C | Machine Screw |
Tapping Screw |
||||||||
| rpm | g | mm | mm | mm | kg/cm² | mm | m³/min | kgf-cm | % | |||
| T10MPB | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.20 | 0.5-2 | ± 3 | M1.4-M2.2 | M1.1-M1.7 |
| T20MPB | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.20 | 1-8 | ± 3 | M1.7-M3.4 | M1.4-M2.7 |
| T30MPB | 1800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-17 | ± 3 | M2.5-M4.3 | M2.0-M3.4 |
| T35MPB | 2200 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-20 | ± 3 | M2.5-M4.5 | M2.0-M3.5 |
| T38MPB | 1800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 3-25 | ± 3 | M2.5-M4.8 | M2.0-M3.8 |
| T40MPB | 1000 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.28 | 5-30 | ± 3 | M2.8-M5.0 | M2.3-M4.1 |
| T45MPB | 800 | 620 | 180 | 30 | 28 | 6.0 | 5.0 | 0.30 | 8-40 | ± 3 | M3.4-M5.6 | M2.7-M4.5 |
| T48MPB | 1700 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 5-45 | ± 3 | M2.8-M5.8 | M2.3-M4.5 |
| T50MPB | 1400 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 7-50 | ± 3 | M3.2-M6.0 | M2.6-M4.8 |
| T55MPB | 1000 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 7-65 | ± 3 | M3.2-M6.5 | M2.6-M5.2 |
| T60MPB | 550 | 1150 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 15-95 | ± 3 | M4.0-M7.2 | M3.3-M6.0 |
| T65MPB | 330 | 1200 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 30-180 | ± 3 | M5.0-M9.2 | M4.1-M7.1 |
| T68MPB | 250 | 1200 | 215 | 40 | 37 | 6.0 | 8.0 | 0.55 | 50-280 | ± 3 | M6.0-M10.8 | M4.8-M8.6 |
＊ Tool length does not include the air inlet fitting.
▲ Specifications are subject to change without prior notice.
★ 【Customization】Custom specifications are available based on customer requirements. Please contact us for more details.
★ 【Note】Torque values are for reference only. Actual performance may vary depending on operating conditions and environment.
★ 【Note】To ensure component durability and extend tool lifespan, it is recommended that the working torque during use does not exceed 70% of the tool’s maximum torque capacity. Continuous operation at the maximum torque may accelerate component wear and shorten the overall service life of the tool. This guideline can also serve as an important reference when selecting the appropriate model.
● Output Drive
| 1/4" Hex | 5mm | 1/4" Square (FOR 10~45 type) |
3/8" Square (FOR 48~68 type) |
| MPB | MPA | MPW | MPW |
